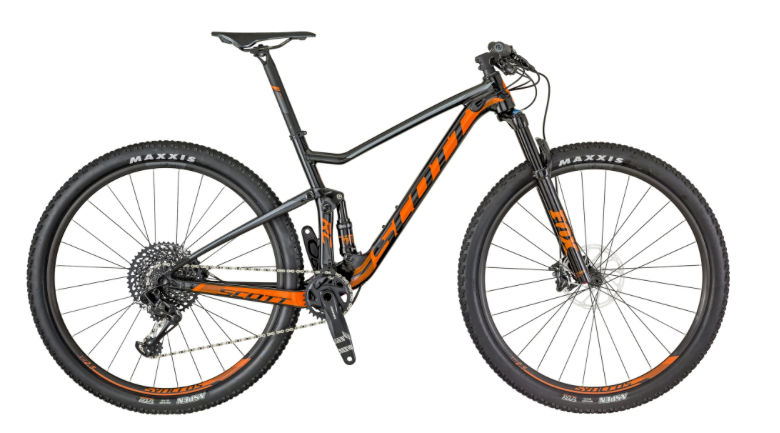

2018 Scott Spark RC Alloy geometry
Full frame geometry for the 2018 Scott Spark RC Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 587 | 430 | 73.8 | 68.5 | 95 | 600 | 440 | 737 | 50 | 435 | 1128 | 91 |
| S | 587 | 400 | 73.8 | 68.5 | 95 | 570 | 410 | 739 | 50 | 435 | 1098 | 91 |
| L | 596 | 457 | 73.8 | 68.5 | 105 | 630 | 490 | 756 | 50 | 435 | 1159 | 91 |
| XL | 606 | 474 | 73.8 | 68.5 | 115 | 650 | 540 | 787 | 50 | 435 | 1180 | 91 |
All measurements in millimetres unless marked (°) for angles.
