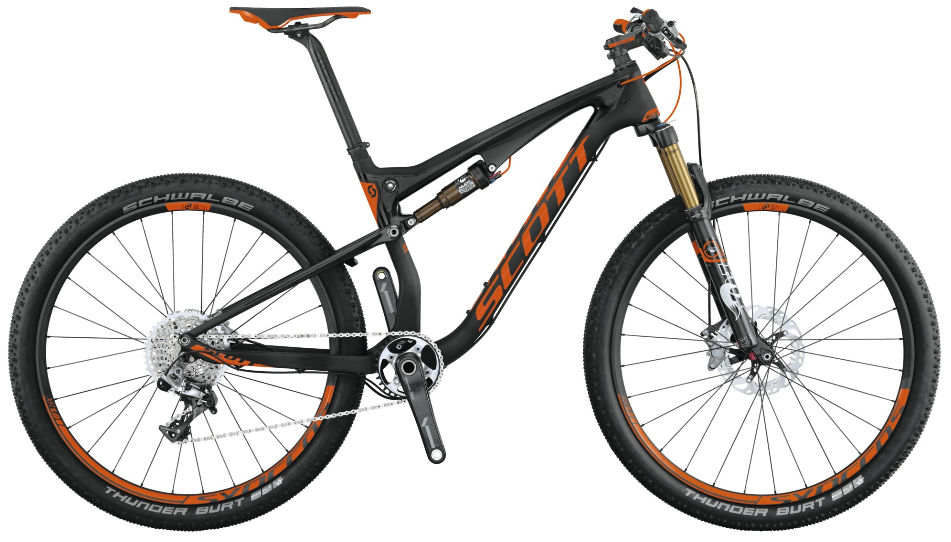

2015 Scott Spark Carbon geometry
Full frame geometry for the 2015 Scott Spark Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-High | 572 | 399 | 73 | 68.8 | 105 | 569 | 412 | 764 | 16 | 661 | 433 | 1094 |
| S-Low | 576 | 394 | 73 | 68.3 | 105 | 570 | 412 | 762 | 22 | 662 | 433 | 1094 |
| M-High | 577 | 427 | 73 | 68.8 | 110 | 599 | 440 | 766 | 16 | 692 | 433 | 1125 |
| M-Low | 580 | 423 | 73 | 68.3 | 110 | 600 | 440 | 763 | 22 | 693 | 433 | 1125 |
| L-High | 586 | 450 | 73 | 68.8 | 120 | 624 | 490 | 798 | 16 | 717 | 433 | 1150 |
| L-Low | 590 | 445 | 73 | 68.3 | 120 | 625 | 490 | 795 | 22 | 718 | 433 | 1150 |
| XL-High | 600 | 470 | 73 | 68.8 | 135 | 649 | 530 | 828 | 16 | 744 | 433 | 1177 |
| XL-Low | 604 | 466 | 73 | 68.3 | 135 | 650 | 530 | 824 | 22 | 745 | 433 | 1177 |
All measurements in millimetres unless marked (°) for angles.
