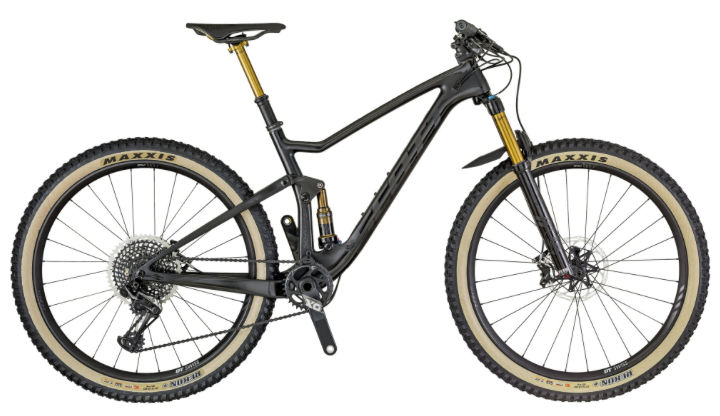

2018 Scott Spark 27.5 Carbon geometry
Full frame geometry for the 2018 Scott Spark 27.5 Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 598 | 426 | 73.2 | 66.9 | 95 | 607 | 440 | 748 | 36 | 438 | 1158 | 100 |
| S | 598 | 396 | 73.2 | 66.9 | 95 | 577 | 410 | 741 | 36 | 438 | 1128 | 100 |
| L | 607 | 454 | 73.2 | 66.9 | 105 | 637 | 490 | 762 | 36 | 438 | 1189 | 100 |
| XL | 616 | 471 | 73.2 | 66.9 | 115 | 657 | 540 | 780 | 36 | 438 | 1210 | 100 |
All measurements in millimetres unless marked (°) for angles.
