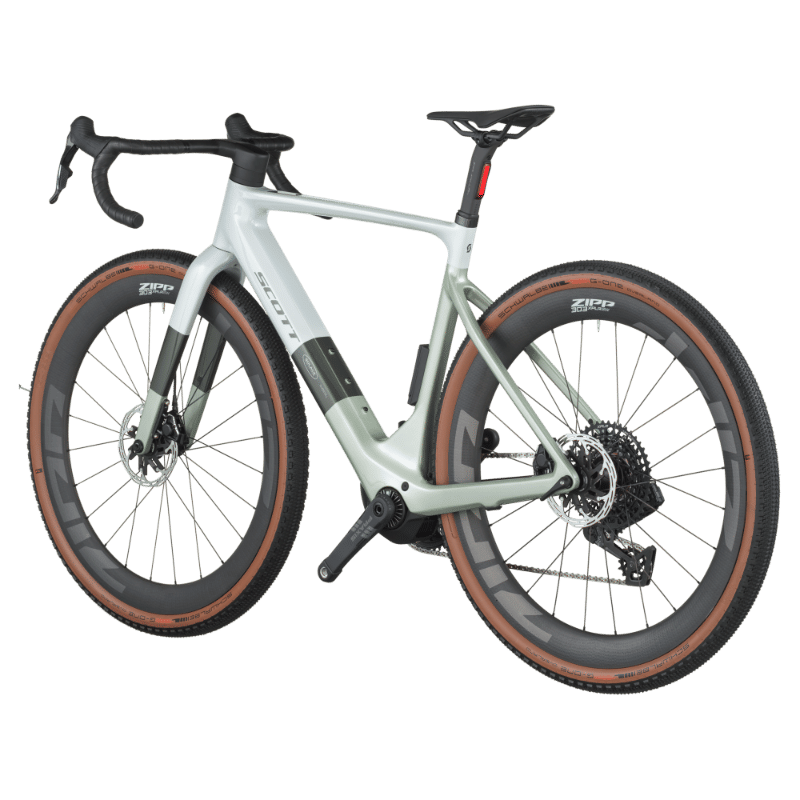

2026 Scott Solace Gravel eRIDE geometry
Full frame geometry for the 2026 Scott Solace Gravel eRIDE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 519.3 | 374 | 74.5 | 69.5 | 85 | 518 | 477 | 759 | 76 | 435 | 1021.5 | 80.8 |
| S | 544.7 | 378 | 74 | 70 | 110 | 534.2 | 507 | 785 | 76 | 435 | 1030.1 | 77.5 |
| M | 565.6 | 387 | 73.5 | 71 | 128 | 554.5 | 527 | 803 | 76 | 435 | 1036.8 | 70.7 |
| L | 590.2 | 398 | 73 | 71 | 154 | 578.4 | 547 | 824 | 76 | 435 | 1056.2 | 70.7 |
| XL | 610 | 406 | 73 | 71 | 175 | 592.5 | 567 | 841 | 76 | 435 | 1071.1 | 70.7 |
All measurements in millimetres unless marked (°) for angles.
