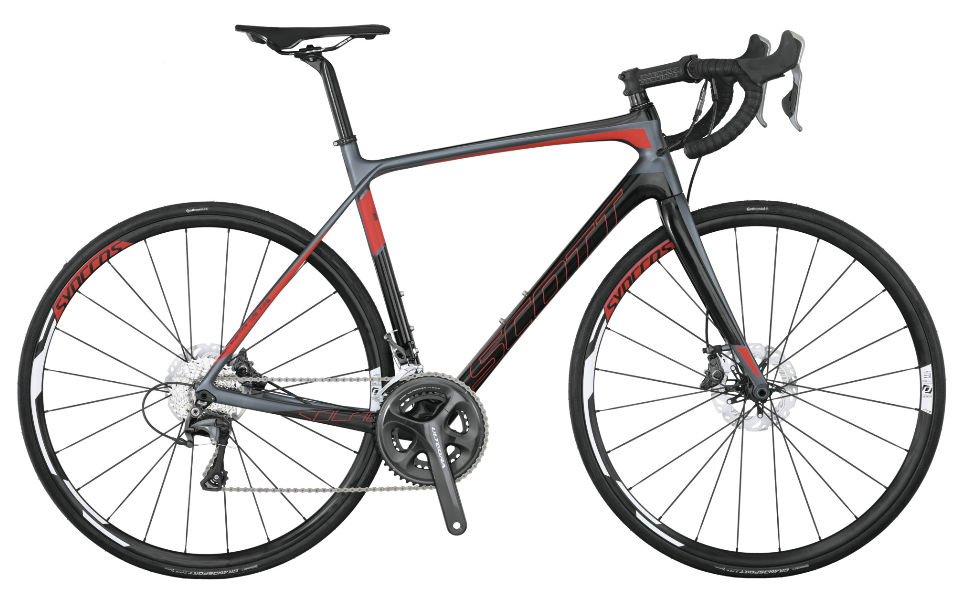

2014 Scott Solace Disc geometry
Full frame geometry for the 2014 Scott Solace Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 517 | 367 | 75 | 70.5 | 115 | 505 | 470 | 725 | 67 | 573 | 405 | 973 | 43 | 73 |
| XS | 528 | 374 | 75 | 71 | 125 | 515 | 490 | 741 | 67 | 579 | 405 | 979 | 43 | 70 |
| S | 551 | 377 | 74.5 | 72 | 145 | 530 | 520 | 768 | 67 | 581 | 405 | 981 | 43 | 63 |
| M | 571 | 381 | 74 | 72.5 | 165 | 545 | 540 | 788 | 67 | 587 | 405 | 987 | 43 | 60 |
| L | 592 | 385 | 73.5 | 73 | 185 | 560 | 560 | 808 | 67 | 591 | 405 | 992 | 43 | 57 |
| XL | 613 | 389 | 73.1 | 73.3 | 205 | 575 | 580 | 827 | 67 | 599 | 405 | 999 | 43 | 55 |
| XXL | 632 | 397 | 73 | 73.3 | 225 | 590 | 610 | 851 | 67 | 612 | 405 | 1013 | 43 | 55 |
All measurements in millimetres unless marked (°) for angles.
