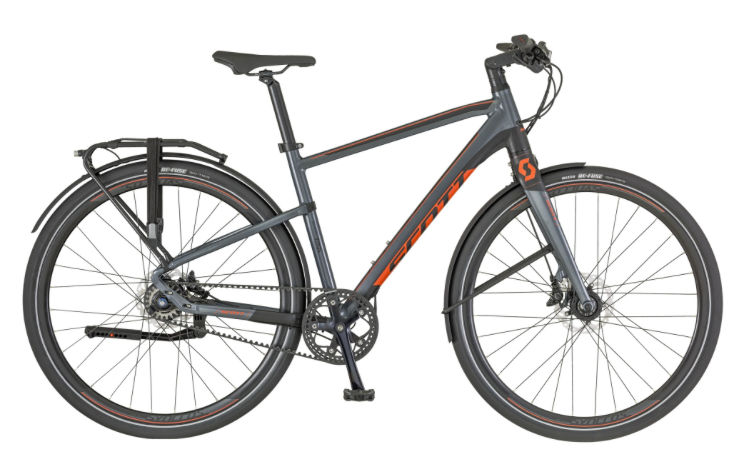

2018 Scott Silence geometry
Full frame geometry for the 2018 Scott Silence, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 387 | 73 | 70 | 145 | 570 | 440 | 766 | 60 | 455 | 1083 |
| M | 613 | 398 | 73 | 70 | 160 | 585 | 480 | 795 | 60 | 455 | 1099 |
| L | 636 | 406 | 73 | 70 | 185 | 600 | 520 | 827 | 60 | 455 | 1115 |
| XL | 660 | 418 | 73 | 70 | 210 | 620 | 570 | 864 | 60 | 455 | 1137 |
All measurements in millimetres unless marked (°) for angles.
