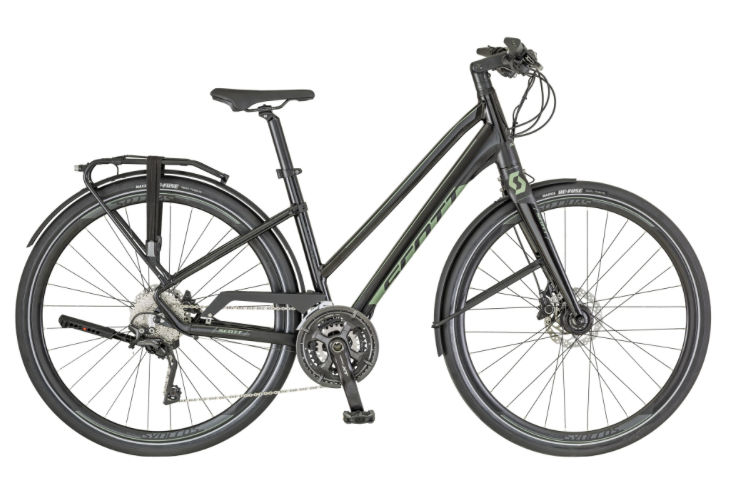

2018 Scott Silence Ladys geometry
Full frame geometry for the 2018 Scott Silence Ladys, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 599 | 387 | 73 | 70 | 190 | 575 | 500 | 688 | 65 | 455 | 1088 |
| M | 646 | 368 | 73 | 70 | 190 | 565 | 460 | 687 | 65 | 455 | 1078 |
| S | 646 | 352 | 73 | 70 | 190 | 550 | 420 | 687 | 65 | 455 | 1063 |
All measurements in millimetres unless marked (°) for angles.
