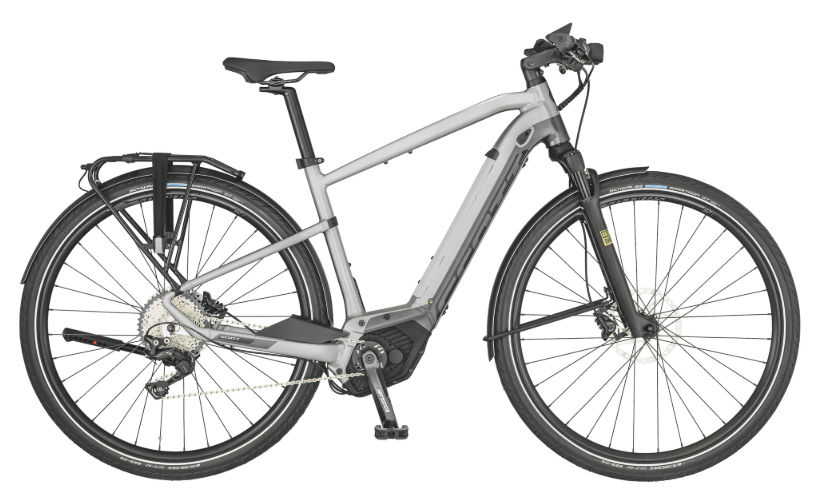

2019 Scott Silence eRide geometry
Full frame geometry for the 2019 Scott Silence eRide, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 640 | 398 | 72.5 | 69.5 | 145 | 600 | 480 | 822 | 70 | 465 | 1120 |
| S | 640 | 384 | 73 | 69.5 | 145 | 580 | 445 | 813 | 70 | 465 | 1106 |
| L | 659 | 412 | 72.5 | 70.5 | 160 | 620 | 520 | 850 | 70 | 465 | 1129 |
| XL | 682 | 418 | 72 | 70.5 | 185 | 640 | 570 | 875 | 70 | 465 | 1143 |
All measurements in millimetres unless marked (°) for angles.
