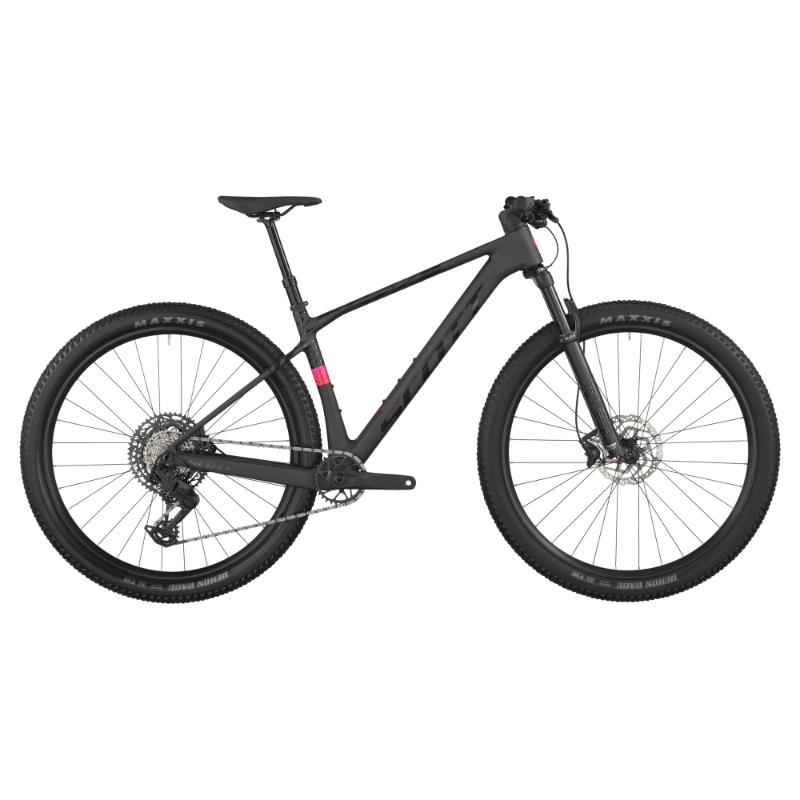

2026 Scott Scale geometry
Full frame geometry for the 2026 Scott Scale, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600.3 | 418.5 | 75.4 | 67.9 | 90 | 575 | 390 | 752 | 62 | 425 | 1105.4 | 44 | 105 |
| M | 604.9 | 442.3 | 75.4 | 67.9 | 95 | 600.2 | 440 | 781 | 62 | 425 | 1131.1 | 44 | 105 |
| L | 618.9 | 463.6 | 75.3 | 67.9 | 110 | 626 | 480 | 800 | 62 | 425 | 1158 | 44 | 105 |
| XL | 628.1 | 491.2 | 75.3 | 67.9 | 120 | 656.5 | 530 | 835.1 | 62 | 425 | 1189.4 | 44 | 105 |
All measurements in millimetres unless marked (°) for angles.
