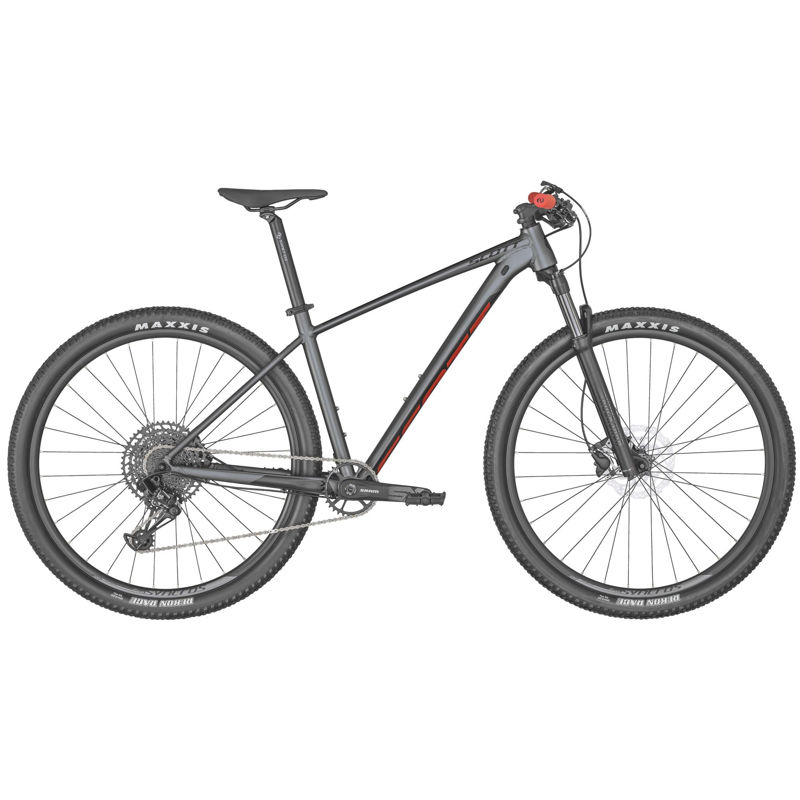

2021 Scott Scale Series geometry
Full frame geometry for the 2021 Scott Scale Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 605.3 | 421.8 | 73.6 | 69.5 | 100 | 600 | 440 | 776 | 58 | 440 | 1118 |
| S | 605.3 | 396.8 | 73.6 | 69.5 | 100 | 575 | 390 | 748 | 58 | 440 | 1092.1 |
| L | 619.4 | 437.7 | 73.6 | 69.5 | 115 | 620 | 480 | 805 | 58 | 440 | 1138.2 |
| XL | 628.7 | 455 | 73.6 | 69.5 | 125 | 640 | 530 | 840 | 58 | 440 | 1159 |
| XXL | 638.1 | 492.2 | 73.6 | 69.5 | 135 | 660 | 580 | 874 | 58 | 440 | 1211 |
All measurements in millimetres unless marked (°) for angles.
