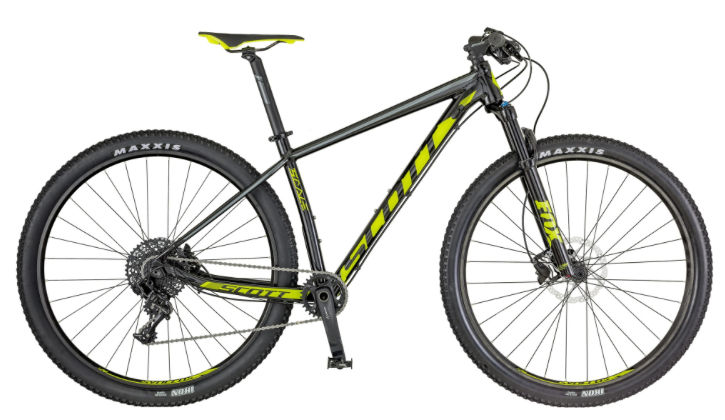

2018 Scott Scale 29 Alloy geometry
Full frame geometry for the 2018 Scott Scale 29 Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 591 | 419 | 73.6 | 69.5 | 105 | 600 | 440 | 779 | 58 | 438 | 1116 | 85 |
| S | 591 | 394 | 73.6 | 69.5 | 105 | 575 | 395 | 750 | 58 | 438 | 1091 | 85 |
| L | 600 | 441 | 73.6 | 69.5 | 115 | 625 | 480 | 791 | 58 | 438 | 1142 | 85 |
| XL | 610 | 464 | 73.6 | 69.5 | 125 | 650 | 530 | 825 | 58 | 438 | 1167 | 85 |
| XXL | 619 | 481 | 73.6 | 69.5 | 135 | 670 | 580 | 863 | 58 | 438 | 1188 | 85 |
All measurements in millimetres unless marked (°) for angles.
