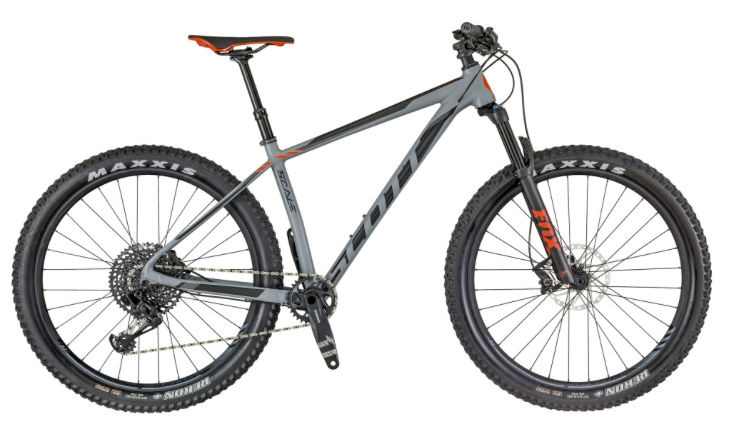

2018 Scott Scale 27.5 Alloy geometry
Full frame geometry for the 2018 Scott Scale 27.5 Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 389 | 72.8 | 66.5 | 100 | 577 | 390 | 780 | 55 | 439 | 1108 |
| M | 612 | 412 | 72.8 | 66.5 | 105 | 602 | 440 | 806 | 55 | 439 | 1133 |
| L | 621 | 435 | 72.8 | 66.5 | 115 | 627 | 480 | 829 | 55 | 439 | 1159 |
| XL | 631 | 457 | 72.8 | 66.5 | 125 | 652 | 530 | 857 | 55 | 439 | 1185 |
All measurements in millimetres unless marked (°) for angles.
