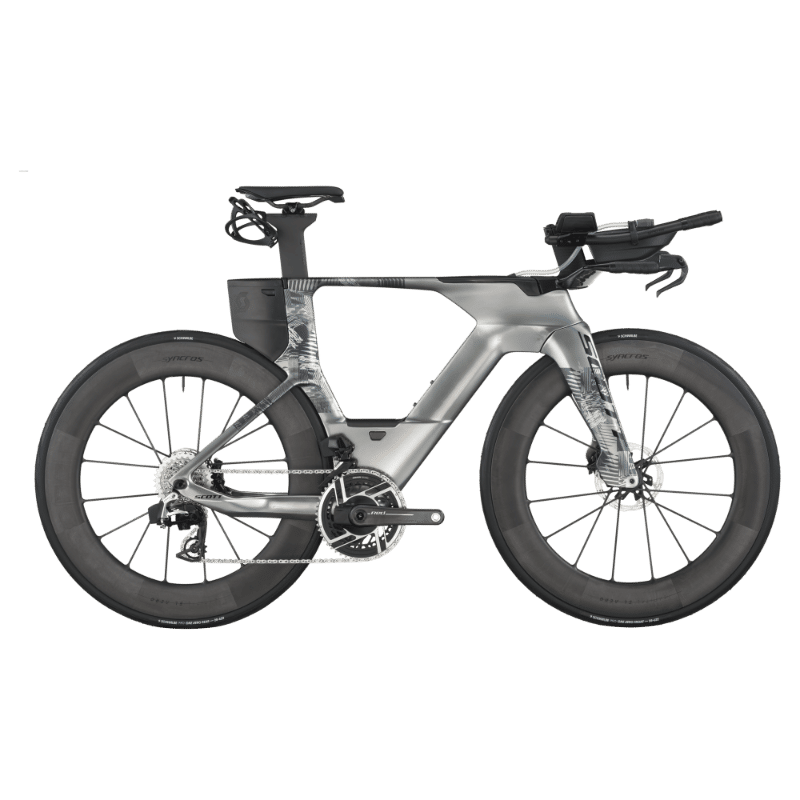

2026 Scott Plasma RC geometry
Full frame geometry for the 2026 Scott Plasma RC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S/52 | 520 | 392.5 | 75.2 | 72.5 | 71.5 | 529.3 | 503 | 746 | 75 | 410 | 982 |
| XS/49 | 520 | 372.5 | 75.2 | 72.5 | 71.5 | 509.3 | 503 | 746 | 75 | 410 | 962 |
| M/54 | 535 | 417.5 | 75.2 | 72.5 | 87 | 555.8 | 552.4 | 795.8 | 75 | 410 | 1011.7 |
| L/56 | 555 | 442.5 | 75.2 | 72.5 | 108 | 582.9 | 572.3 | 815.8 | 75 | 410 | 1043 |
| XL/58 | 570 | 467.5 | 75.2 | 72.5 | 124 | 609.5 | 587.5 | 831.1 | 75 | 410 | 1072.8 |
All measurements in millimetres unless marked (°) for angles.
