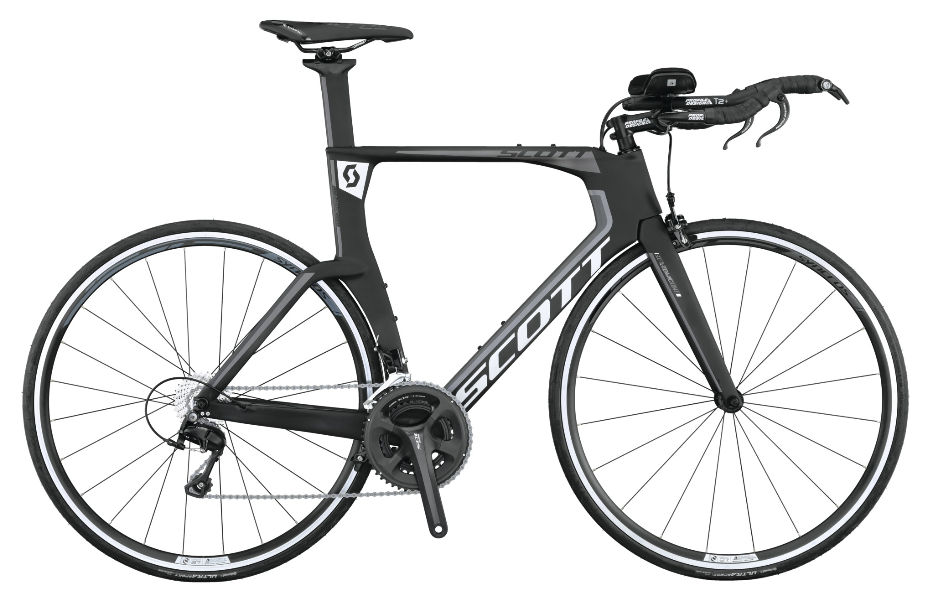

2015 Scott Plasma 4 geometry
Full frame geometry for the 2015 Scott Plasma 4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 500 | 383 | 74 | 72 | 100 | 526 | 520 | 769 | 65 | 571 | 403 | 965 | 43 | 63 |
| M | 530 | 400 | 75 | 73 | 128 | 546 | 550 | 799 | 65 | 589 | 403 | 983 | 43 | 57 |
| L | 560 | 417 | 75 | 73 | 159 | 566 | 579 | 829 | 65 | 615 | 403 | 1009 | 43 | 57 |
| XL | 600 | 430 | 76 | 73.5 | 199 | 583 | 619 | 869 | 65 | 635 | 403 | 1029 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
