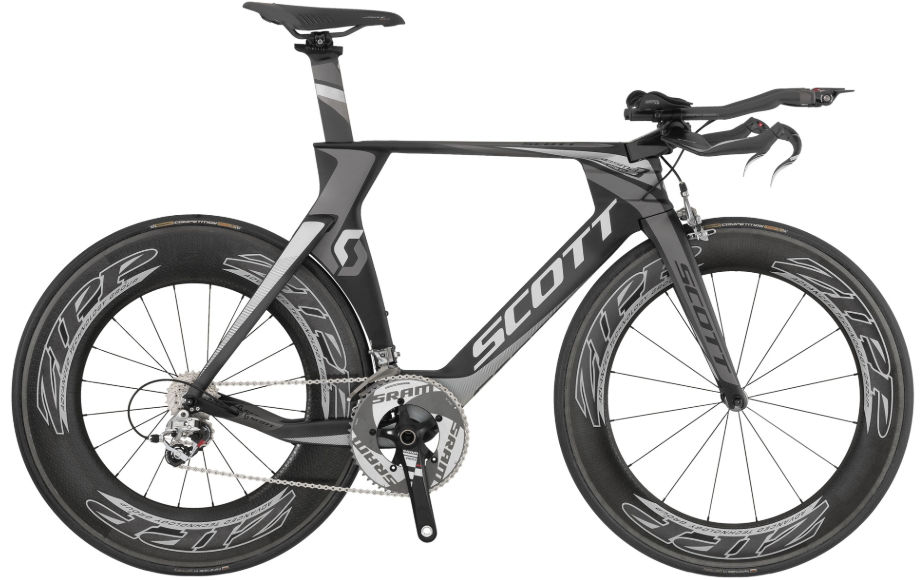

2012 Scott Plasma 3 geometry
Full frame geometry for the 2012 Scott Plasma 3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 478 | 398 | 76 | 72.5 | 77 | 517 | 780 | 65 | 575 | 405 | 971 | 43 | 60 |
| M | 508 | 423 | 76 | 73 | 107 | 550 | 810 | 65 | 605 | 405 | 1001 | 43 | 57 |
| L | 538 | 438 | 76 | 73 | 138 | 572 | 840 | 65 | 629 | 405 | 1025 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
