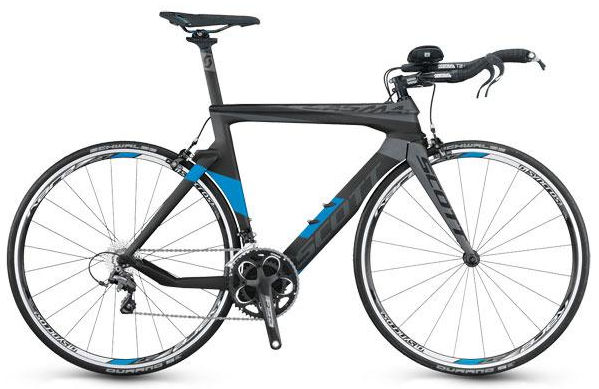

2014 Scott Plasma 2 geometry
Full frame geometry for the 2014 Scott Plasma 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/47 | 491 | 368 | 76 | 71 | 90 | 490 | 480 | 720 | 70 | 564 | 406 | 960 | 43 | 70 |
| XS/49 | 502 | 380 | 76 | 71.5 | 100 | 505 | 491 | 739 | 70 | 576 | 406 | 972 | 43 | 66 |
| S/52 | 514 | 392 | 76 | 72 | 110 | 520 | 503 | 759 | 70 | 543 | 406 | 938 | 43 | 63 |
| M/54 | 525 | 404 | 76 | 72.5 | 120 | 535 | 514 | 779 | 70 | 599 | 406 | 995 | 43 | 60 |
| L/56 | 544 | 416 | 76 | 72.5 | 140 | 552 | 533 | 798 | 70 | 617 | 406 | 1013 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
