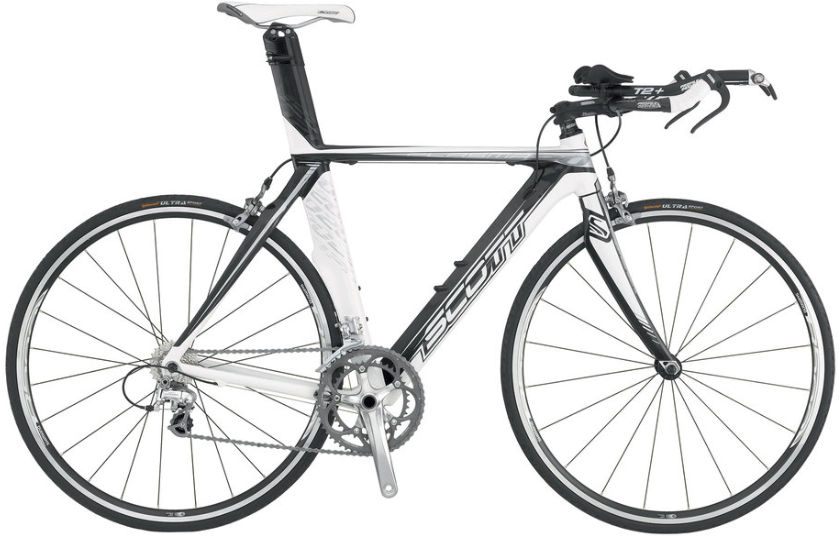

2007 Scott Plasma 1 geometry
Full frame geometry for the 2007 Scott Plasma 1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 378 | 76 | 71 | 100 | 505 | 660 | 73 | 576 | 395 | 959 | 43 | 70 |
| S | 520 | 390 | 76 | 71.5 | 110 | 520 | 700 | 73 | 587 | 395 | 971 | 43 | 66 |
| M | 531 | 403 | 76 | 72 | 120 | 535 | 740 | 73 | 599 | 395 | 982 | 43 | 63 |
| L | 552 | 414 | 76 | 72.5 | 140 | 552 | 780 | 73 | 612 | 395 | 996 | 43 | 60 |
| XL | 585 | 426 | 76 | 72.5 | 175 | 572 | 820 | 73 | 635 | 395 | 1019 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
