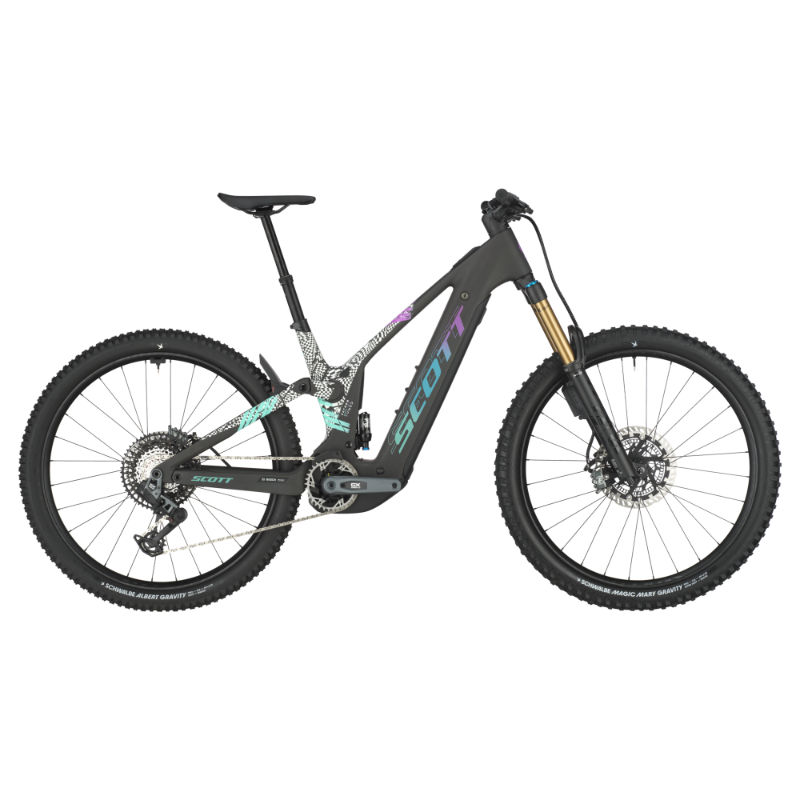

2025 Scott Patron ST geometry
Full frame geometry for the 2025 Scott Patron ST, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 650.5 | 428.3 | 76.4 | 64.9 | 120 | 582.4 | 405 | 719 | 28.4 | 454 | 1222.3 | 44 | 127.9 |
| M | 655 | 448.3 | 76.3 | 64.9 | 125 | 607.9 | 435 | 719 | 28.4 | 454 | 1244.5 | 44 | 127.9 |
| L | 664.2 | 473.9 | 76.3 | 64.9 | 135 | 629.7 | 470 | 729 | 28.4 | 454 | 1274.2 | 44 | 127.9 |
| XL | 673.3 | 503.4 | 76.3 | 64.9 | 145 | 660.2 | 500 | 732 | 28.5 | 454 | 1308 | 44 | 127.9 |
All measurements in millimetres unless marked (°) for angles.
