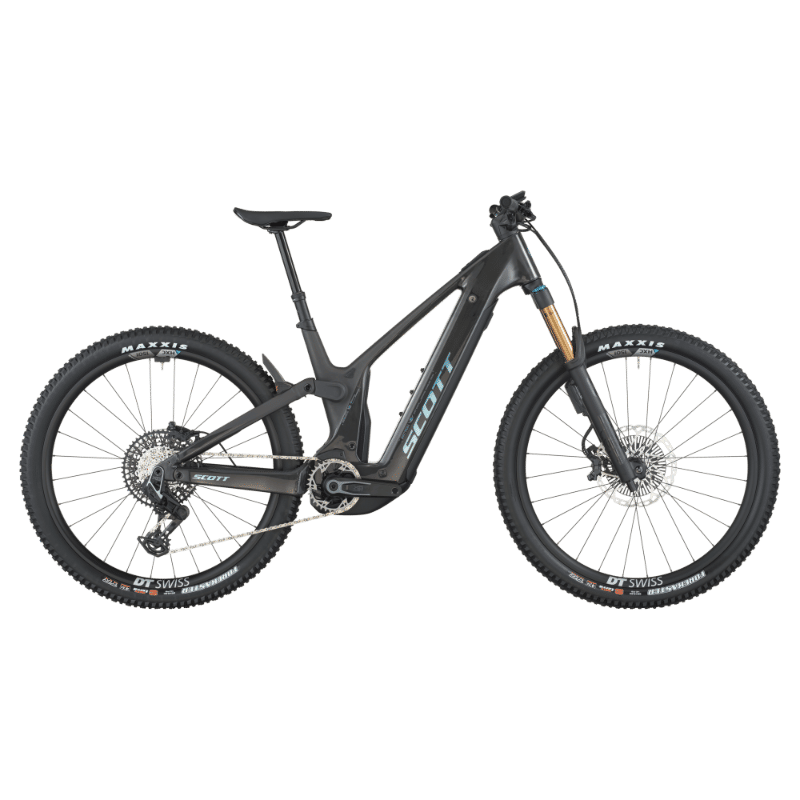

2025 Scott Patron 900 geometry
Full frame geometry for the 2025 Scott Patron 900, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 643 | 439.4 | 77.4 | 65.8 | 120 | 579.3 | 405 | 719 | 36.2 | 453.5 | 1212.8 | 44 | 120.5 |
| M | 647.4 | 459.3 | 77.2 | 65.8 | 125 | 605.5 | 435 | 719 | 36.1 | 453.5 | 1234.9 | 44 | 120.6 |
| L | 656.3 | 484.7 | 77.2 | 65.8 | 135 | 626.6 | 470 | 729 | 35.9 | 453.5 | 1264.7 | 44 | 120.8 |
| XL | 665.1 | 514.2 | 77.2 | 65.8 | 145 | 657 | 500 | 732 | 35.8 | 453.5 | 1298.4 | 44 | 120.9 |
All measurements in millimetres unless marked (°) for angles.
