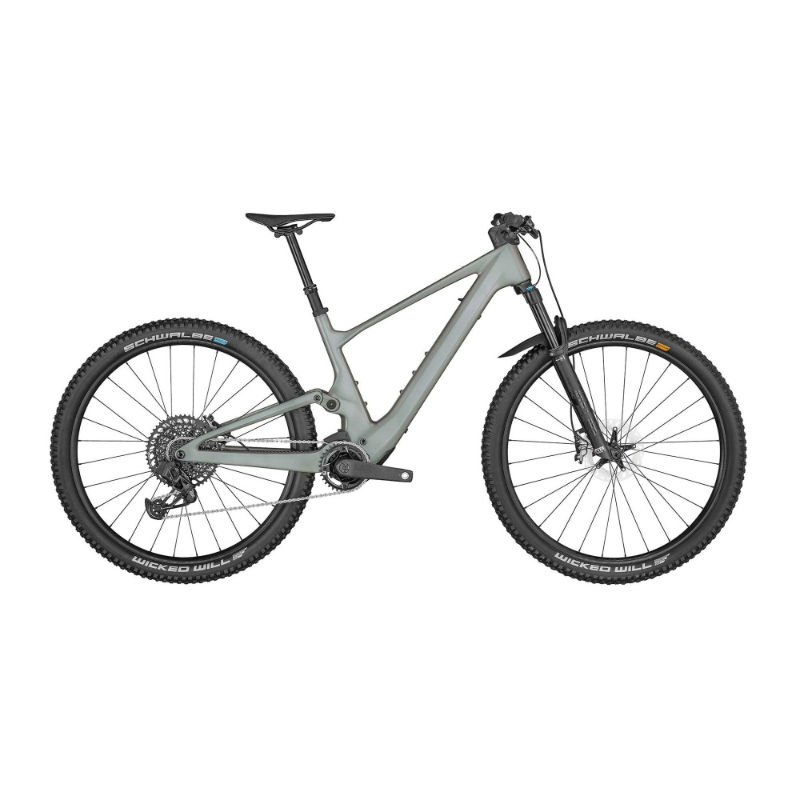

2026 Scott Lumen eRIDE geometry
Full frame geometry for the 2026 Scott Lumen eRIDE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 615 | 446 | 77 | 65.5 | 110 | 589 | 440 | 767 | 38.5 | 450 | 1206 | 44 | 126 |
| S | 615 | 416 | 76.8 | 65.5 | 110 | 562 | 415 | 765 | 38.5 | 450 | 1176 | 44 | 126 |
| L | 625 | 476 | 77.2 | 65.5 | 120 | 620 | 480 | 780 | 38.5 | 450 | 1240 | 44 | 126 |
| XL | 638 | 501 | 77.5 | 65.5 | 135 | 645 | 520 | 800 | 38.5 | 450 | 1270 | 44 | 126 |
All measurements in millimetres unless marked (°) for angles.
