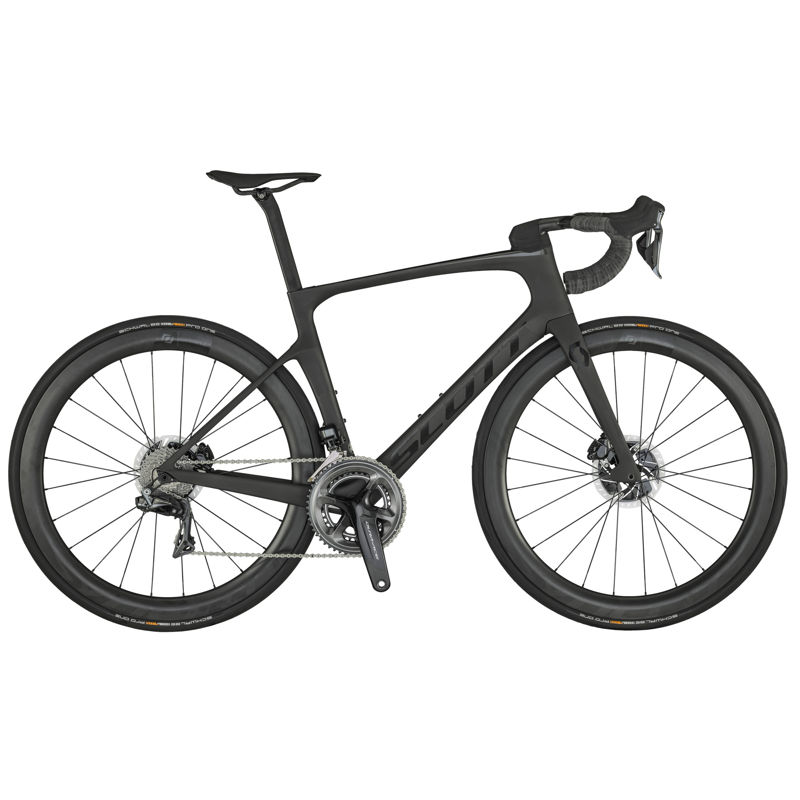

2021 Scott Foil geometry
Full frame geometry for the 2021 Scott Foil, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/47 | 502.6 | 370.6 | 74.5 | 70.5 | 110 | 510 | 410 | 715.9 | 66 | 410 | 972 |
| XS/49 | 509 | 378.8 | 74.5 | 71 | 115 | 520 | 430 | 729.4 | 66 | 410 | 978 |
| S/52 | 526.7 | 384 | 74 | 72 | 130 | 535 | 460 | 753.6 | 66 | 410 | 980 |
| M/54 | 547.5 | 388.9 | 73.6 | 72.5 | 150 | 550 | 480 | 773.5 | 66 | 410 | 987 |
| L/56 | 568.3 | 394.5 | 73.3 | 73 | 170 | 565 | 500 | 798.8 | 66 | 410 | 994.2 |
| XL/58 | 588.5 | 400 | 73 | 73.3 | 190 | 580 | 520 | 812.9 | 66 | 410 | 1002.9 |
| XXL/61 | 607.7 | 403.4 | 72.5 | 73.3 | 210 | 595 | 550 | 837.3 | 66 | 410 | 1012 |
All measurements in millimetres unless marked (°) for angles.
