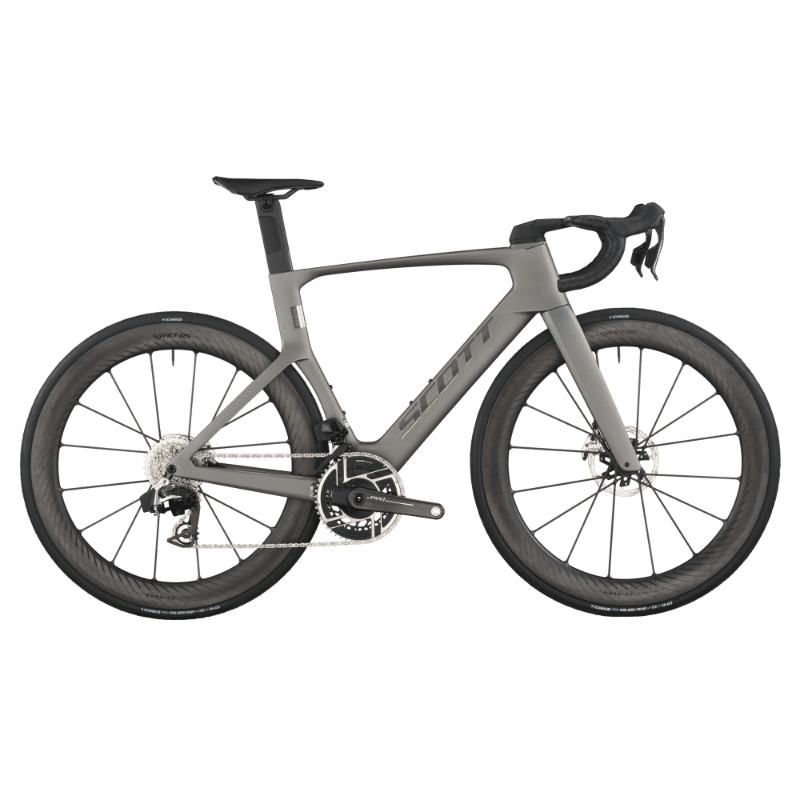

2025 Scott Foil RC geometry
Full frame geometry for the 2025 Scott Foil RC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| XXS/47 | 505 | 380 | 74.5 | 70.5 | 103 | 520 | 412 | 746.4 |
| XS/49 | 511 | 388 | 74.5 | 71 | 108 | 530 | 412 | 759.6 |
| S/52 | 527 | 389 | 74 | 72 | 121 | 540 | 412 | 779.4 |
| M/54 | 548 | 389 | 73.6 | 72.5 | 141 | 550 | 412 | 801 |
| L/56 | 568 | 394.5 | 73.3 | 73 | 161 | 565 | 412 | 820 |
| XL/58 | 589 | 400 | 73 | 73.3 | 181 | 580 | 412 | 838 |
| XXL/61 | 606 | 409 | 72.5 | 73.3 | 199 | 600 | 412 | 853.3 |
All measurements in millimetres unless marked (°) for angles.
