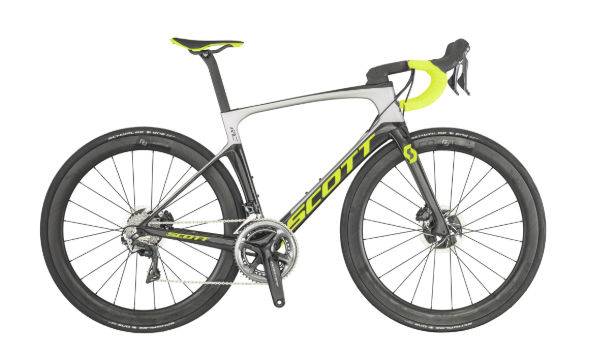

2018 Scott Foil Disc geometry
Full frame geometry for the 2018 Scott Foil Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/47 | 503 | 371 | 74.5 | 70.5 | 110 | 510 | 470 | 716 | 66 | 410 | 972 |
| XS/49 | 509 | 379 | 74.5 | 71 | 115 | 520 | 490 | 729 | 66 | 410 | 978 |
| S/52 | 527 | 384 | 74 | 72 | 130 | 535 | 520 | 754 | 66 | 410 | 980 |
| M/54 | 548 | 389 | 73.6 | 72.5 | 150 | 550 | 540 | 774 | 66 | 410 | 987 |
| L/56 | 568 | 394 | 73.3 | 73 | 170 | 565 | 560 | 799 | 66 | 410 | 994 |
| XL/58 | 588 | 400 | 73 | 73.3 | 190 | 580 | 580 | 813 | 66 | 410 | 1003 |
| XXL/61 | 608 | 403 | 72.5 | 73.3 | 210 | 595 | 610 | 837 | 66 | 410 | 1012 |
All measurements in millimetres unless marked (°) for angles.
