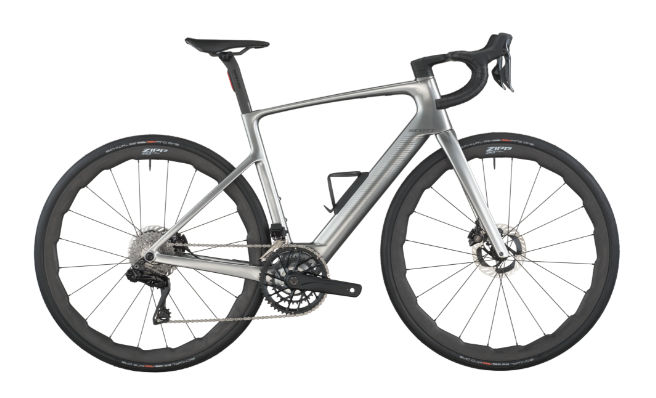

2025 Scott Fastlane Premium geometry
Full frame geometry for the 2025 Scott Fastlane Premium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/49 | 535 | 378 | 75 | 71.8 | 115 | 521 | 458 | 758 | -75 | 420 | 47 |
| S/52 | 559 | 381 | 74.5 | 72 | 139 | 536 | 478 | 780 | -75 | 420 | 47 |
| M/54 | 580 | 385 | 74 | 72.2 | 161 | 551 | 500 | 802 | -75 | 420 | 47 |
| L/56 | 602 | 388 | 73.5 | 72.5 | 182 | 566 | 524 | 823 | -75 | 420 | 47 |
| XL/58 | 622 | 392 | 73.1 | 73 | 201 | 582 | 555 | 849 | -75 | 420 | 47 |
All measurements in millimetres unless marked (°) for angles.
