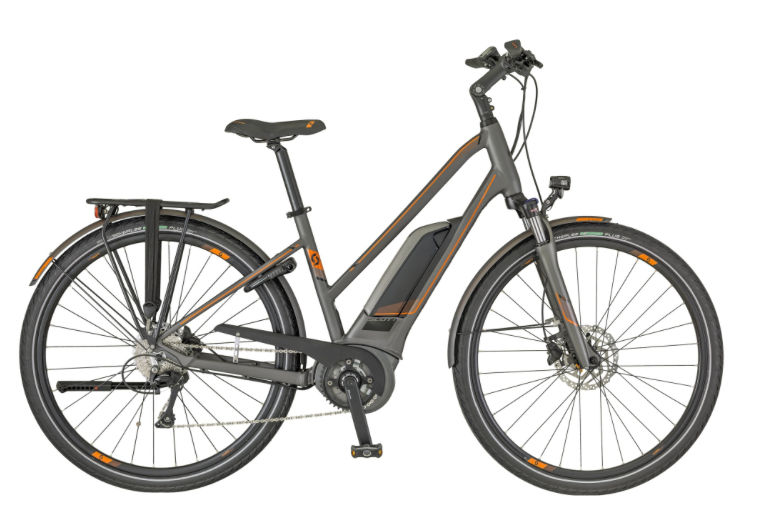

2018 Scott E-Sub Tour Ladys geometry
Full frame geometry for the 2018 Scott E-Sub Tour Ladys, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 667 | 352 | 73.5 | 70.3 | 190 | 550 | 420 | 543 | 56 | 491 | 1087 |
| M | 669 | 360 | 73 | 71 | 190 | 565 | 460 | 556 | 56 | 491 | 1089 |
| L | 671 | 363 | 72.5 | 71.3 | 190 | 575 | 500 | 600 | 56 | 491 | 1087 |
All measurements in millimetres unless marked (°) for angles.
