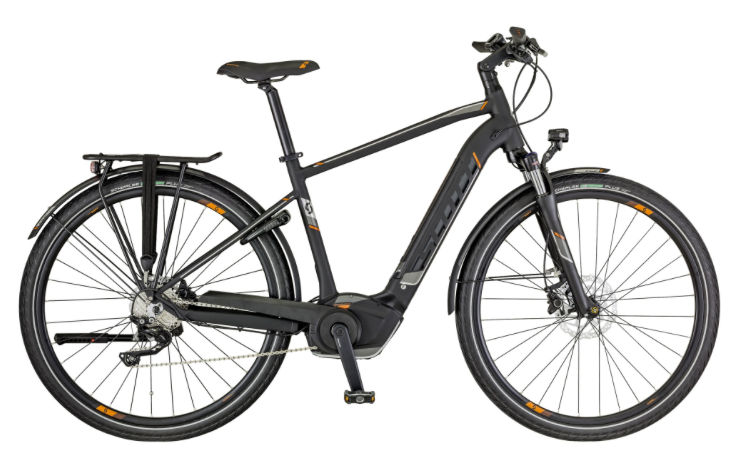

2018 Scott E-Sub Sport geometry
Full frame geometry for the 2018 Scott E-Sub Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 632 | 393 | 73.5 | 69 | 155 | 580 | 440 | 802 | 56 | 485 | 1143 |
| M | 639 | 405 | 73 | 69.5 | 160 | 600 | 480 | 822 | 56 | 485 | 1151 |
| L | 667 | 416 | 73 | 70.5 | 185 | 620 | 520 | 853 | 56 | 485 | 1161 |
| XL | 691 | 422 | 72.5 | 70.5 | 210 | 640 | 570 | 889 | 56 | 485 | 1175 |
All measurements in millimetres unless marked (°) for angles.
