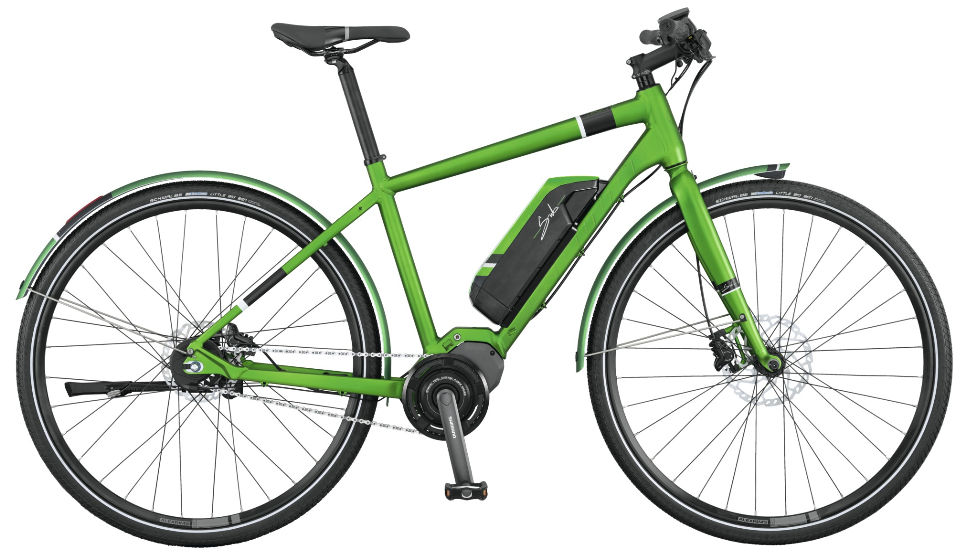

2015 Scott E-Sub Speed geometry
Full frame geometry for the 2015 Scott E-Sub Speed, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 577 | 391 | 73 | 71 | 135 | 567 | 450 | 759 | 60 | 616 | 476 | 1085 |
| M | 596 | 395 | 73 | 71 | 155 | 577 | 480 | 785 | 60 | 627 | 476 | 1096 |
| L | 615 | 404 | 73 | 71 | 175 | 592 | 510 | 808 | 60 | 642 | 476 | 1112 |
| XL | 634 | 414 | 73 | 71 | 195 | 608 | 550 | 838 | 60 | 659 | 476 | 1128 |
All measurements in millimetres unless marked (°) for angles.
