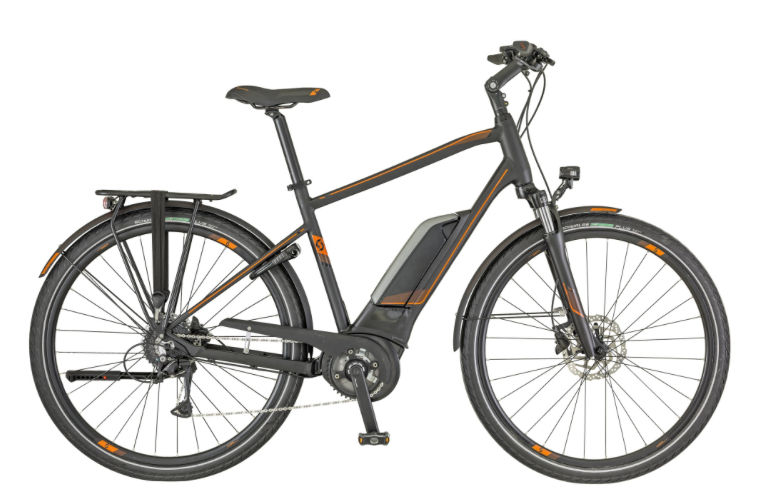

2018 Scott E-Sub Active geometry
Full frame geometry for the 2018 Scott E-Sub Active, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 617 | 378 | 73 | 71 | 135 | 567 | 450 | 784 | 56 | 491 | 1089 |
| M | 638 | 376 | 72.5 | 71.5 | 155 | 577 | 480 | 810 | 56 | 491 | 1088 |
| L | 659 | 384 | 72.5 | 72 | 175 | 592 | 510 | 836 | 56 | 491 | 1098 |
| XL | 680 | 387 | 72 | 72.5 | 195 | 608 | 550 | 868 | 56 | 491 | 1101 |
All measurements in millimetres unless marked (°) for angles.
