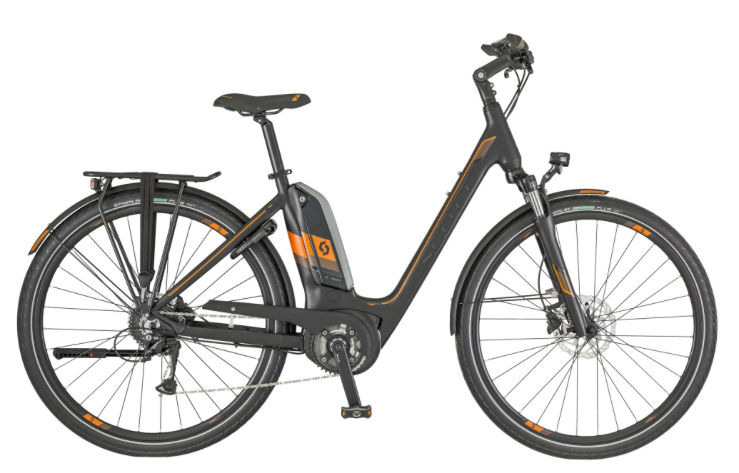

2018 Scott E-Sub Active Unisex geometry
Full frame geometry for the 2018 Scott E-Sub Active Unisex, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 643 | 421 | 73 | 69.5 | 170 | 627 | 520 | 440 | 56 | 495 | 1178 |
| S | 643 | 413 | 73 | 69.5 | 170 | 619 | 485 | 440 | 56 | 495 | 1170 |
| L | 648 | 430 | 73 | 69.5 | 175 | 637 | 560 | 440 | 56 | 495 | 1188 |
All measurements in millimetres unless marked (°) for angles.
