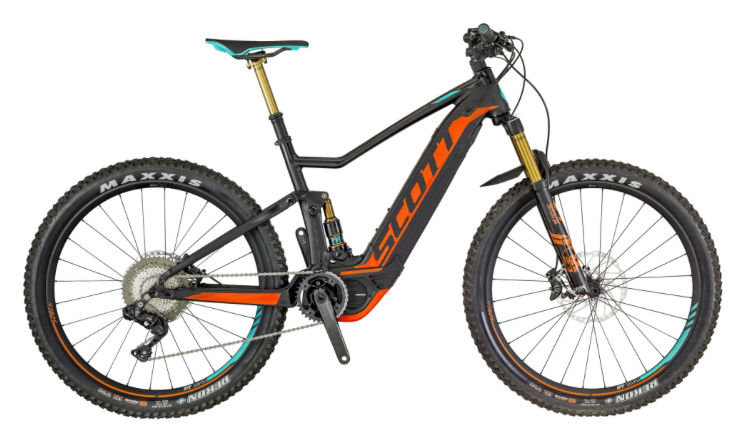

2015 Scott E-Spark MK I geometry
Full frame geometry for the 2015 Scott E-Spark MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-High | 571 | 401 | 73.7 | 69 | 105 | 568 | 400 | 764 | 14 | 661 | 488 | 1149 |
| S-Low | 575 | 394 | 73 | 68.3 | 105 | 570 | 400 | 760 | 22 | 663 | 488 | 1150 |
| M-High | 576 | 429 | 73.7 | 69 | 110 | 598 | 440 | 770 | 14 | 691 | 488 | 1179 |
| M-Low | 580 | 423 | 73 | 68.3 | 110 | 600 | 440 | 765 | 22 | 693 | 488 | 1180 |
| L-High | 583 | 458 | 73.8 | 69 | 120 | 627 | 490 | 805 | 14 | 722 | 488 | 1210 |
| L-Low | 589 | 450 | 73 | 68.3 | 120 | 630 | 490 | 798 | 22 | 723 | 488 | 1210 |
All measurements in millimetres unless marked (°) for angles.
