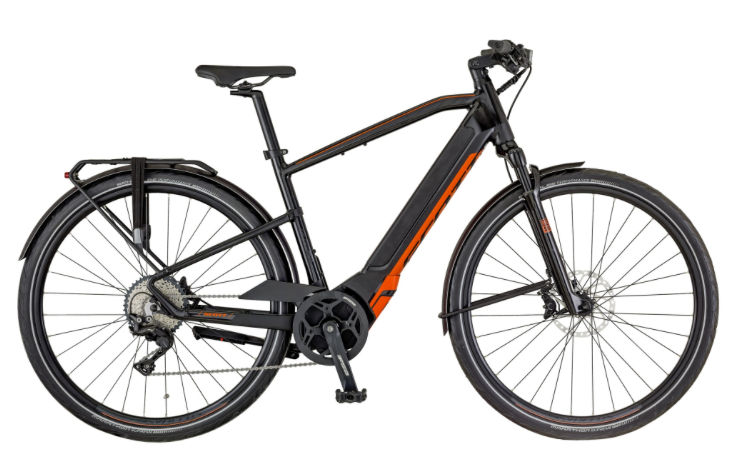

2018 Scott E-Silence geometry
Full frame geometry for the 2018 Scott E-Silence, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 622 | 390 | 73 | 70 | 145 | 580 | 440 | 788 | 56 | 460 | 1101 |
| M | 636 | 400 | 72.5 | 70 | 160 | 600 | 480 | 817 | 56 | 460 | 1116 |
| L | 664 | 411 | 72.5 | 71 | 185 | 620 | 520 | 851 | 56 | 460 | 1125 |
| XL | 688 | 416 | 72 | 71 | 210 | 640 | 570 | 890 | 56 | 460 | 1139 |
All measurements in millimetres unless marked (°) for angles.
