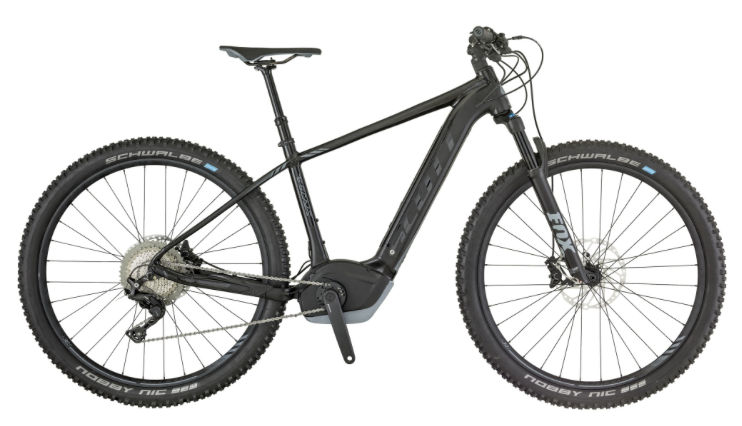

2018 Scott E-Scale 29 Internal geometry
Full frame geometry for the 2018 Scott E-Scale 29 Internal, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 615 | 404 | 73.6 | 67.5 | 110 | 585 | 400 | 771 | 48 | 478 | 1170 |
| M | 624 | 416 | 73.6 | 67.5 | 120 | 600 | 440 | 792 | 48 | 478 | 1186 |
| L | 629 | 440 | 73.6 | 67.5 | 125 | 625 | 480 | 813 | 48 | 478 | 1211 |
| XL | 638 | 462 | 73.6 | 67.5 | 135 | 650 | 530 | 842 | 48 | 478 | 1237 |
All measurements in millimetres unless marked (°) for angles.
