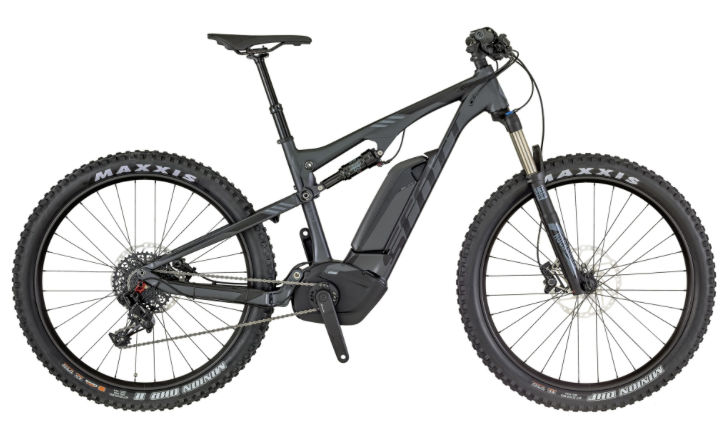

2018 Scott E-Genius External geometry
Full frame geometry for the 2018 Scott E-Genius External, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-High | 620 | 425 | 75.5 | 65.3 | 120 | 585 | 410 | 736 | 24 | 460 | 1215 | 111 |
| S-Low | 624 | 419 | 75 | 64.8 | 120 | 586 | 410 | 739 | 31 | 462 | 1216 | 120 |
| M-High | 625 | 444 | 75.5 | 65.3 | 125 | 605 | 440 | 742 | 24 | 460 | 1236 | 111 |
| M-Low | 629 | 437 | 75 | 64.8 | 125 | 607 | 440 | 744 | 31 | 462 | 1237 | 120 |
| L-High | 636 | 465 | 75 | 65.6 | 135 | 635 | 490 | 767 | 24 | 460 | 1258 | 109 |
| L-Low | 640 | 459 | 74.5 | 65.1 | 135 | 637 | 490 | 769 | 31 | 462 | 1259 | 118 |
| XL-High | 645 | 492 | 75 | 65.6 | 145 | 665 | 540 | 778 | 24 | 460 | 1289 | 109 |
| XL-Low | 649 | 486 | 74.5 | 65.1 | 145 | 667 | 540 | 780 | 31 | 462 | 1291 | 117 |
All measurements in millimetres unless marked (°) for angles.
