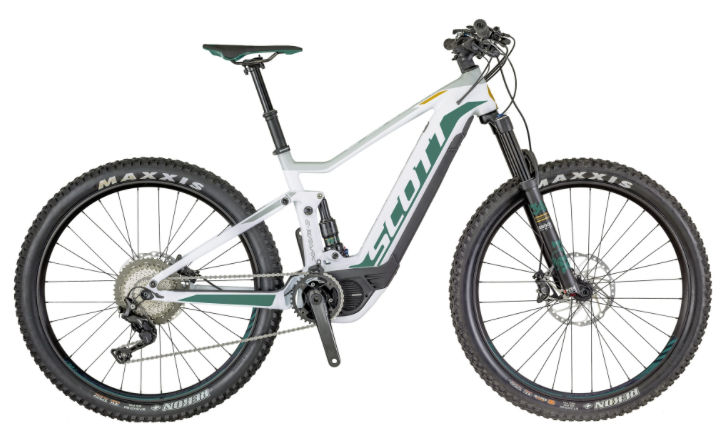

2018 Scott E-Contessa Spark geometry
Full frame geometry for the 2018 Scott E-Contessa Spark, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 606 | 406 | 74 | 67 | 120 | 580 | 410 | 725 | 18 | 448 | 1159 | 97 |
| M | 610 | 435 | 74 | 67 | 125 | 610 | 440 | 738 | 18 | 448 | 1190 | 97 |
| L | 620 | 462 | 74 | 67 | 135 | 640 | 490 | 758 | 18 | 448 | 1221 | 97 |
All measurements in millimetres unless marked (°) for angles.
