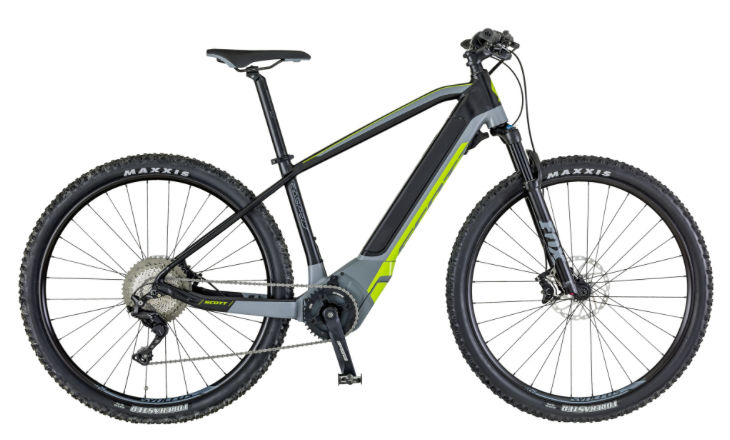

2015 Scott E-Aspect MK I geometry
Full frame geometry for the 2015 Scott E-Aspect MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 579 | 408 | 73 | 69 | 100 | 585 | 440 | 760 | 44 | 662 | 470 | 1128 |
| S | 579 | 398 | 73 | 69 | 100 | 575 | 395 | 735 | 44 | 652 | 470 | 1118 |
| L | 593 | 429 | 73 | 69 | 115 | 610 | 480 | 787 | 44 | 688 | 470 | 1155 |
| XL | 602 | 451 | 73 | 69 | 125 | 635 | 530 | 818 | 44 | 714 | 470 | 1180 |
All measurements in millimetres unless marked (°) for angles.
