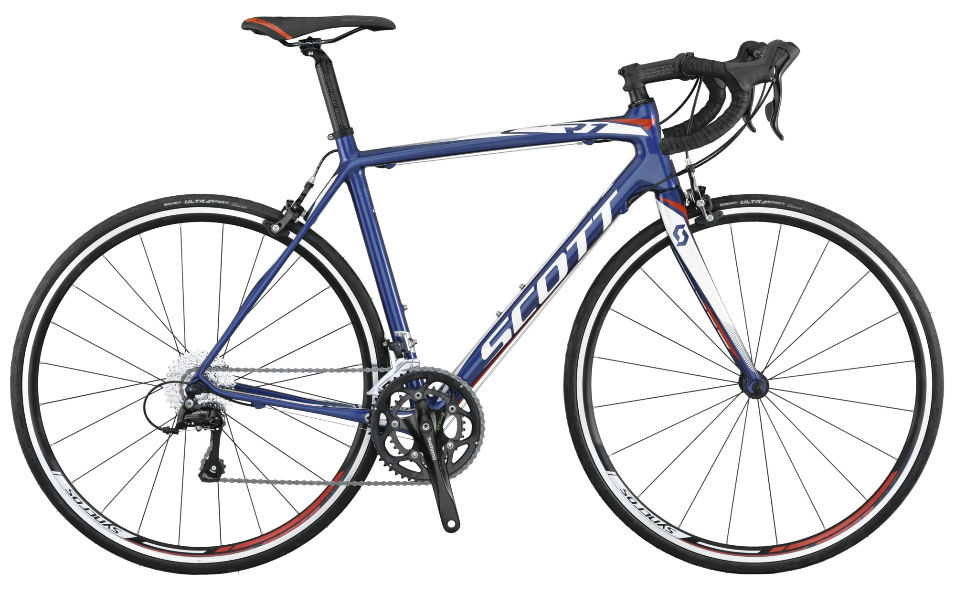

2014 Scott CR1 MKIII geometry
Full frame geometry for the 2014 Scott CR1 MKIII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 513 | 368 | 75 | 70.5 | 111 | 505 | 470 | 723 | 67 | 573 | 405 | 975 | 43 | 73 |
| XS | 519 | 376 | 75 | 71 | 116 | 515 | 490 | 737 | 67 | 579 | 405 | 978 | 43 | 70 |
| S | 545 | 379 | 74.5 | 73 | 136 | 530 | 520 | 765 | 67 | 571 | 405 | 980 | 43 | 57 |
| M | 565 | 383 | 74 | 73 | 156 | 545 | 540 | 784 | 67 | 581 | 405 | 981 | 43 | 57 |
| L | 584 | 387 | 73.5 | 73 | 176 | 560 | 560 | 803 | 67 | 591 | 405 | 992 | 43 | 57 |
| XL | 603 | 394 | 73.3 | 73 | 196 | 575 | 580 | 823 | 67 | 604 | 405 | 1001 | 43 | 57 |
| XXL | 620 | 409 | 73.3 | 73 | 216 | 595 | 610 | 847 | 67 | 625 | 405 | 1021 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
