2019 Scott · EDBW

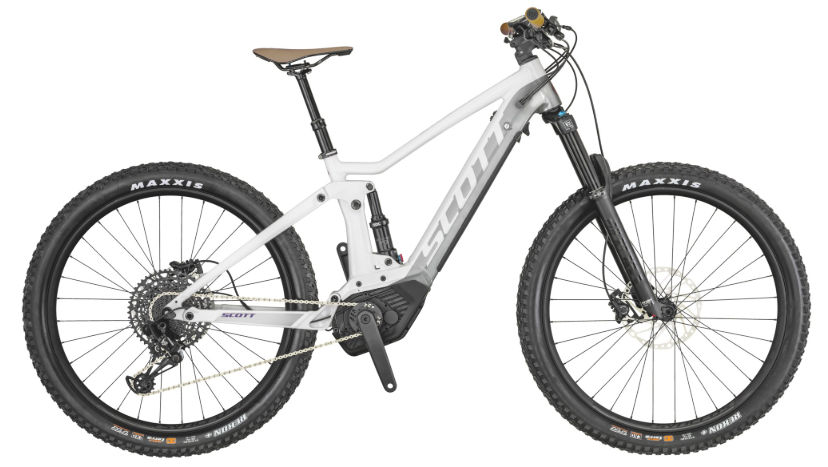

2019 Scott Contessa Strike eRide geometry
Full frame geometry for the 2019 Scott Contessa Strike eRide, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 700 | 608 | 402 | 74.5 | 65.6 | 120 | 570 | 410 | 779 | 18 | 475 | 1199 |
| S / 900 | 612 | 395 | 73.9 | 65 | 120 | 572 | 410 | 792 | 26 | 477 | 1200 |
| M / 700 | 614 | 430 | 74.5 | 66 | 125 | 600 | 440 | 788 | 18 | 475 | 1225 |
| M / 900 | 619 | 423 | 73.9 | 65.4 | 125 | 602 | 440 | 791 | 26 | 477 | 1226 |
| L / 700 | 624 | 457 | 74.5 | 66 | 135 | 630 | 490 | 803 | 18 | 475 | 1257 |
| L / 900 | 628 | 451 | 73.9 | 65.4 | 135 | 632 | 490 | 806 | 26 | 477 | 1258 |
All measurements in millimetres unless marked (°) for angles.
