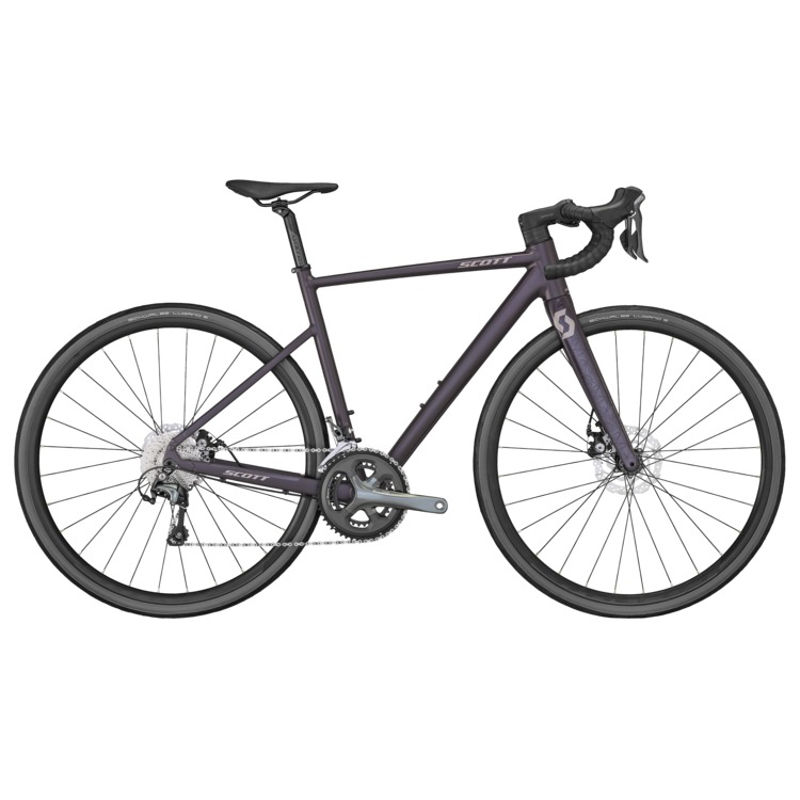

2021 Scott Contessa Speedster geometry
Full frame geometry for the 2021 Scott Contessa Speedster, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/47 | 517.8 | 376 | 75 | 70.5 | 93 | 515 | 470 | 735 | 70 | 425 | 1001.5 |
| XS/49 | 529.1 | 383 | 75 | 71 | 103 | 525 | 490 | 754 | 70 | 425 | 1007.9 |
| S/52 | 551.6 | 387 | 74.5 | 72 | 123 | 540 | 520 | 780 | 70 | 425 | 1010 |
| M/54 | 572.4 | 391 | 74 | 72.5 | 143 | 554 | 540 | 800 | 70 | 425 | 1015.8 |
| L/56 | 593.3 | 385 | 73.5 | 73 | 163 | 569 | 560 | 820 | 70 | 427 | 1023.3 |
All measurements in millimetres unless marked (°) for angles.
