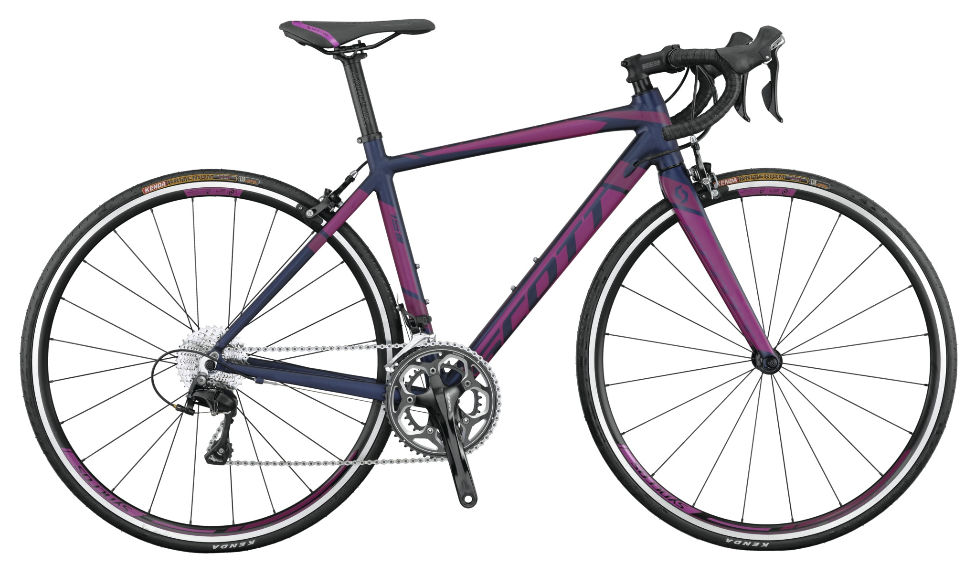

2014 Scott Contessa Speedster MKII geometry
Full frame geometry for the 2014 Scott Contessa Speedster MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/47 | 512 | 368 | 75 | 70.5 | 111 | 505 | 470 | 722 | 67 | 573 | 405 | 973 | 43 | 73 |
| XS/49 | 519 | 376 | 75 | 71 | 116 | 515 | 490 | 736 | 67 | 579 | 405 | 979 | 43 | 70 |
| S/52 | 545 | 379 | 74.5 | 73 | 136 | 530 | 520 | 763 | 67 | 571 | 405 | 971 | 43 | 57 |
| M/54 | 564 | 383 | 74 | 73 | 156 | 545 | 540 | 782 | 67 | 582 | 405 | 982 | 43 | 57 |
| L/56 | 583 | 387 | 73.5 | 73 | 176 | 560 | 560 | 802 | 67 | 591 | 405 | 992 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
