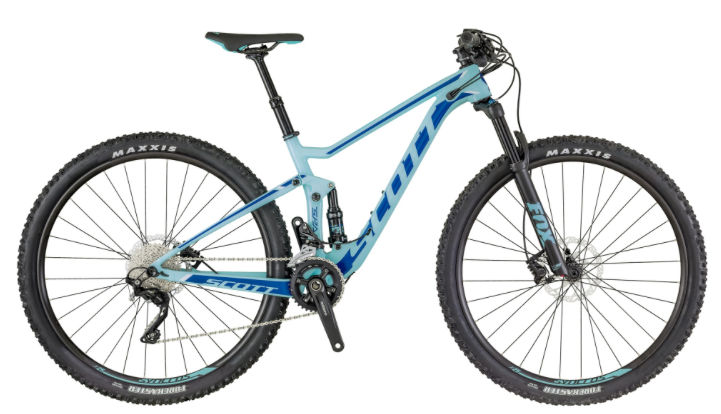

2018 Scott Contessa Spark 29 Alloy geometry
Full frame geometry for the 2018 Scott Contessa Spark 29 Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 593 | 433 | 73.8 | 67.2 | 95 | 605 | 440 | 746 | 43 | 438 | 1152 | 100 |
| S | 593 | 403 | 73.8 | 67.2 | 95 | 575 | 410 | 738 | 43 | 438 | 1122 | 100 |
| L | 602 | 460 | 73.8 | 67.2 | 105 | 635 | 490 | 760 | 43 | 438 | 1183 | 100 |
All measurements in millimetres unless marked (°) for angles.
