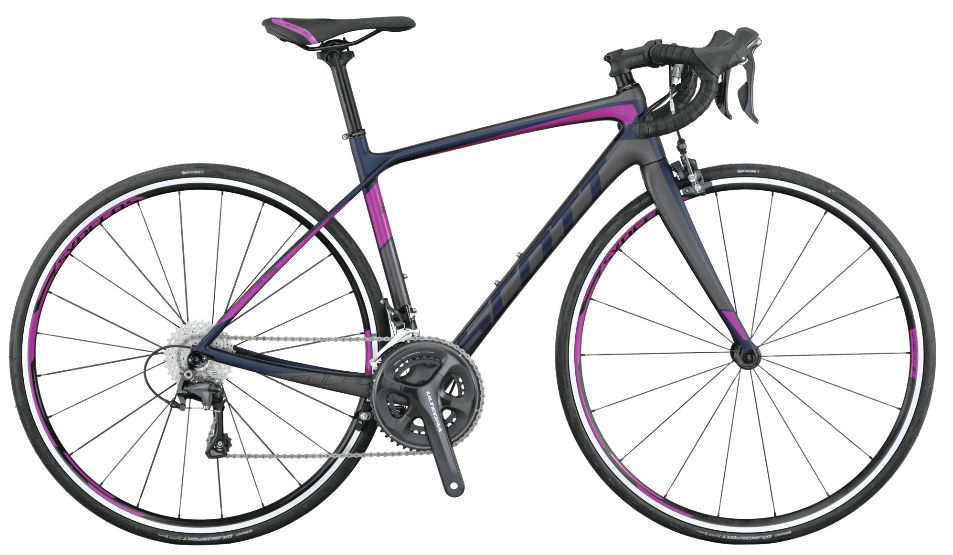

2014 Scott Contessa Solace geometry
Full frame geometry for the 2014 Scott Contessa Solace, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/46 | 526 | 354 | 75 | 70.5 | 125 | 495 | 460 | 725 | 67 | 564 | 405 | 968 | 43 | 73 |
| XS/48 | 537 | 361 | 75 | 71 | 135 | 505 | 480 | 741 | 67 | 570 | 405 | 971 | 43 | 70 |
| S/51 | 560 | 365 | 74.5 | 72 | 155 | 520 | 510 | 767 | 67 | 571 | 405 | 972 | 43 | 63 |
| M/53 | 581 | 368 | 74 | 72.5 | 175 | 535 | 530 | 788 | 67 | 577 | 405 | 977 | 43 | 60 |
| L/55 | 602 | 372 | 73.5 | 73 | 195 | 550 | 550 | 808 | 67 | 581 | 405 | 982 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
