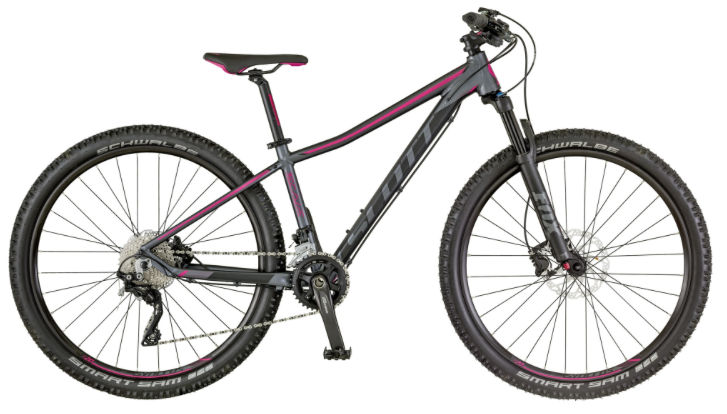

2018 Scott Contessa Scale geometry
Full frame geometry for the 2018 Scott Contessa Scale, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 580 | 388 | 73 | 69 | 100 | 565 | 370 | 676 | 44 | 435 | 1063 | 40 |
| XS | 580 | 368 | 73 | 69 | 100 | 545 | 340 | 666 | 44 | 435 | 1053 | 40 |
| M | 613 | 388 | 72.5 | 69.5 | 115 | 574 | 410 | 725 | 61 | 458 | 1094 | 40 |
| L | 630 | 395 | 72.5 | 69.5 | 125 | 594 | 460 | 760 | 61 | 458 | 1114 | 40 |
All measurements in millimetres unless marked (°) for angles.
