2018 Scott · MHBW

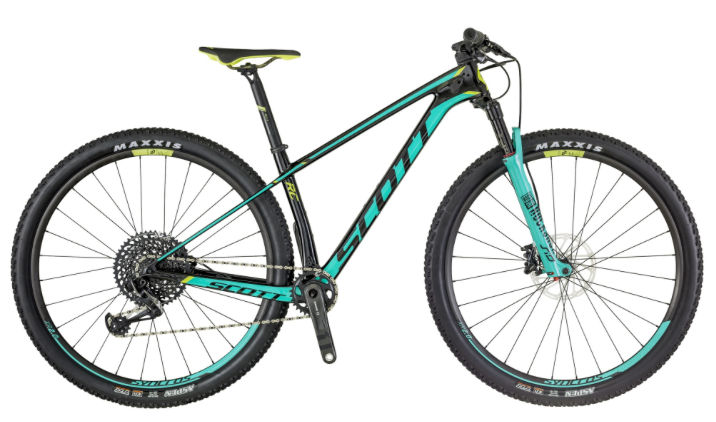

2018 Scott Contessa Scale RC geometry
Full frame geometry for the 2018 Scott Contessa Scale RC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 399 | 73.6 | 69.5 | 95 | 575 | 390 | 743 | 58 | 425 | 1076 | 84 |
| M | 604 | 422 | 73.6 | 69.5 | 100 | 600 | 440 | 774 | 58 | 425 | 1102 | 84 |
| L | 618 | 443 | 73.6 | 69.5 | 115 | 625 | 480 | 800 | 58 | 425 | 1128 | 84 |
All measurements in millimetres unless marked (°) for angles.
