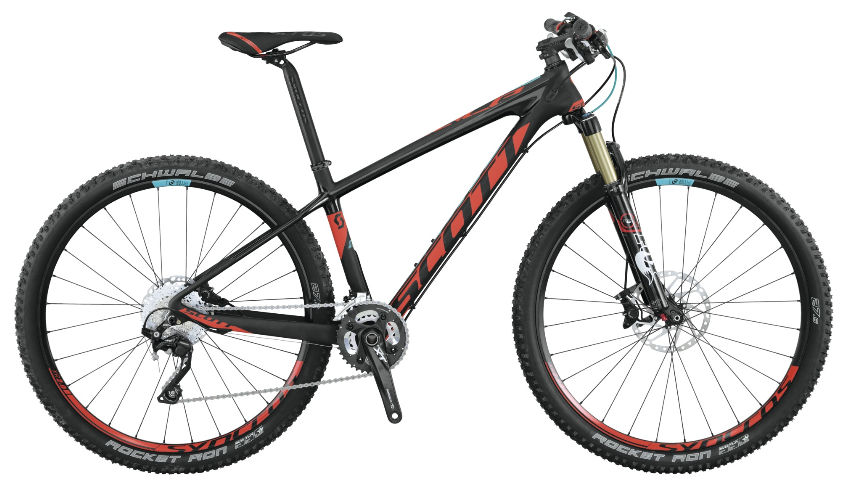

2015 Scott Contessa Scale Carbon MKI geometry
Full frame geometry for the 2015 Scott Contessa Scale Carbon MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 579 | 423 | 73 | 69 | 100 | 600 | 440 | 758 | 44 | 677 | 427 | 1100 |
| S | 579 | 398 | 73 | 69 | 100 | 575 | 390 | 729 | 44 | 652 | 427 | 1075 |
| L | 593 | 444 | 73 | 69 | 115 | 625 | 480 | 787 | 44 | 703 | 427 | 1126 |
| XL | 602 | 466 | 73 | 69 | 125 | 650 | 530 | 820 | 44 | 729 | 427 | 1152 |
All measurements in millimetres unless marked (°) for angles.
