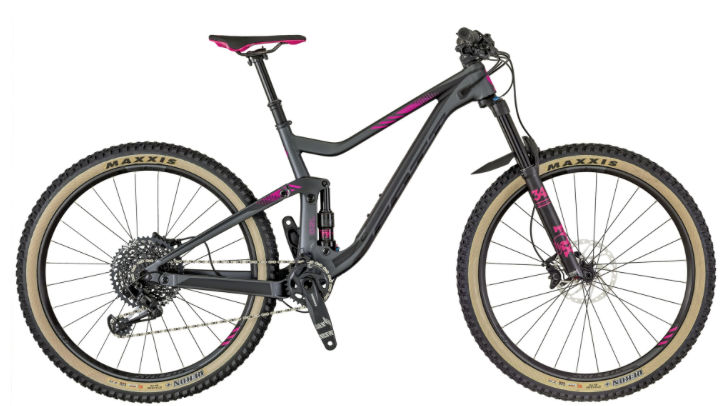

2018 Scott Contessa Genius Alloy geometry
Full frame geometry for the 2018 Scott Contessa Genius Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M-High | 596 | 445 | 75.3 | 65.6 | 95 | 601 | 440 | 20 | 436 | 1198 | 107 |
| S-High | 596 | 412 | 75.3 | 65.6 | 95 | 568 | 410 | 20 | 436 | 1165 | 107 |
| M-Low | 600 | 439 | 74.7 | 65 | 95 | 603 | 440 | 28 | 438 | 1199 | 118 |
| S-Low | 600 | 406 | 74.7 | 65 | 95 | 570 | 410 | 27 | 438 | 1166 | 118 |
| L-High | 609 | 472 | 75.3 | 65.6 | 110 | 632 | 480 | 20 | 436 | 1231 | 107 |
| L-Low | 614 | 466 | 74.8 | 65 | 110 | 633 | 480 | 28 | 438 | 1232 | 118 |
All measurements in millimetres unless marked (°) for angles.
