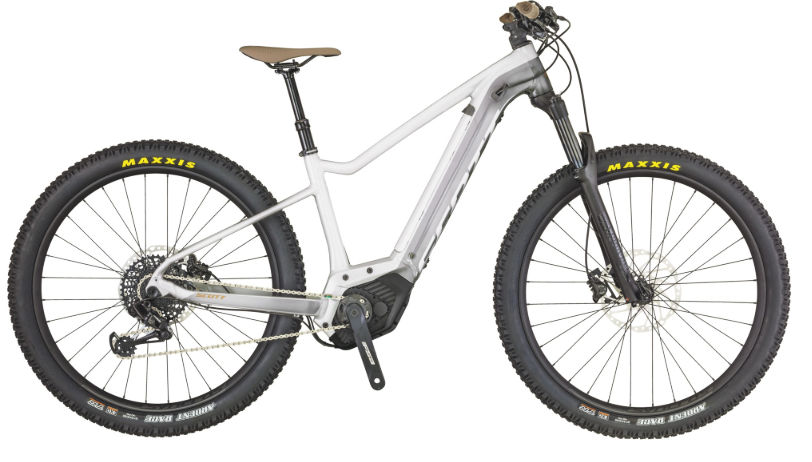

2019 Scott Contessa Aspect eRide geometry
Full frame geometry for the 2019 Scott Contessa Aspect eRide, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 700 | 620 | 391 | 73 | 68.5 | 140 | 580 | 400 | 766 | 50 | 452 | 1112 |
| M / 900 | 644 | 403 | 73 | 68.5 | 145 | 600 | 440 | 808 | 60 | 472 | 1156 |
| L / 900 | 654 | 420 | 73 | 68.5 | 155 | 620 | 490 | 841 | 60 | 472 | 1177 |
| XL / 900 | 658 | 439 | 73 | 68.5 | 160 | 640 | 540 | 870 | 60 | 472 | 1197 |
All measurements in millimetres unless marked (°) for angles.
