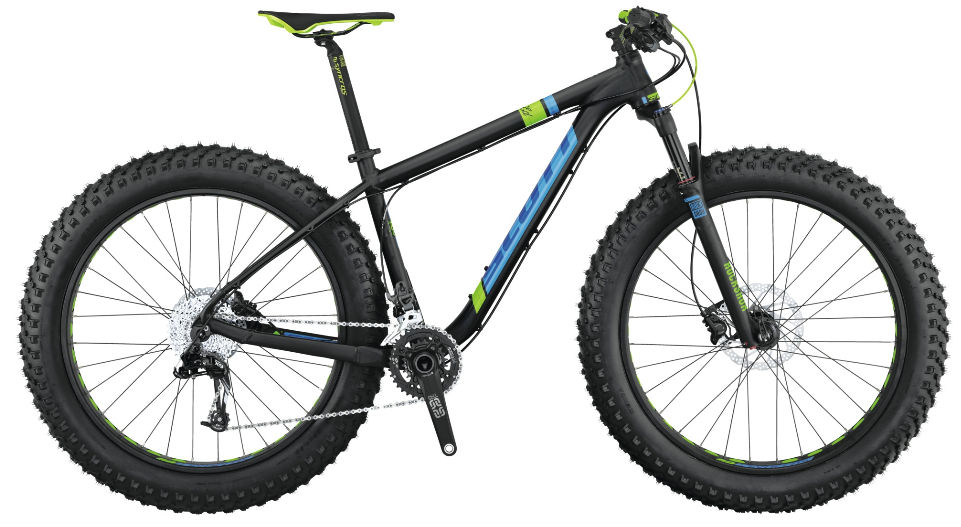

2015 Scott Big Ed geometry
Full frame geometry for the 2015 Scott Big Ed, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 619 | 410 | 73 | 69 | 105 | 600 | 440 | 811 | 60 | 683 | 450 | 1126 |
| S | 619 | 385 | 73 | 69 | 105 | 575 | 390 | 787 | 60 | 658 | 450 | 1101 |
| L | 629 | 432 | 73 | 69 | 115 | 625 | 480 | 835 | 60 | 708 | 450 | 1152 |
| XL | 638 | 454 | 73 | 69 | 125 | 650 | 530 | 863 | 60 | 734 | 450 | 1177 |
All measurements in millimetres unless marked (°) for angles.
