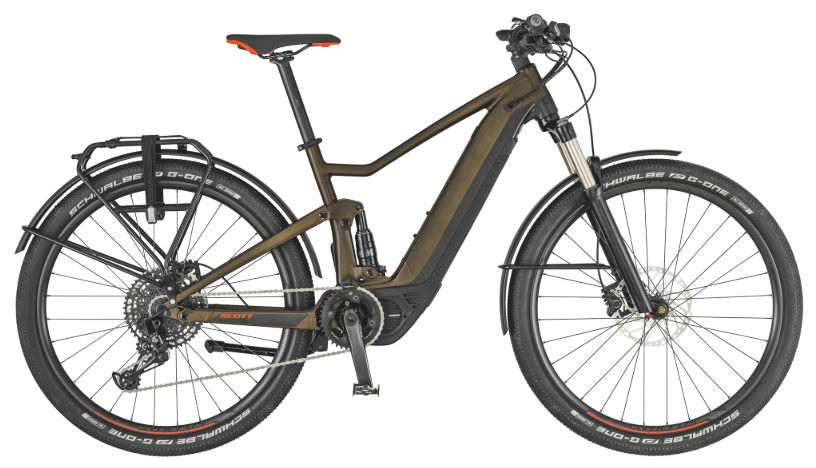

2019 Scott Axis eRide Evo geometry
Full frame geometry for the 2019 Scott Axis eRide Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 900 | 607 | 406 | 73.8 | 65 | 125 | 582 | 410 | 768 | 26 | 462 | 1195 | 121 |
| M / 900 | 610 | 431 | 73.9 | 65.4 | 125 | 607 | 440 | 769 | 26 | 462 | 1216 | 118 |
| L / 900 | 619 | 453 | 73.9 | 65.4 | 135 | 632 | 490 | 801 | 26 | 462 | 1242 | 118 |
| XL / 900 | 628 | 471 | 73.9 | 65.4 | 145 | 652 | 540 | 827 | 26 | 462 | 1264 | 118 |
All measurements in millimetres unless marked (°) for angles.
