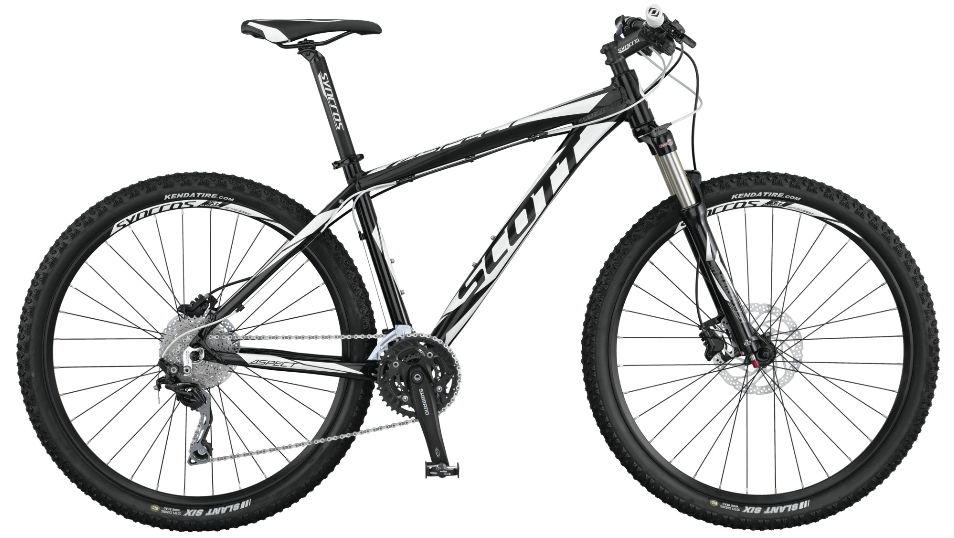

2015 Scott Aspect geometry
Full frame geometry for the 2015 Scott Aspect, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 579 | 398 | 73 | 69 | 100 | 575 | 395 | 771 | 44 | 652 | 427 | 1075 |
| M | 588 | 405 | 73 | 69 | 110 | 585 | 440 | 798 | 44 | 662 | 427 | 1085 |
| L | 602 | 426 | 73 | 69 | 125 | 610 | 480 | 826 | 44 | 688 | 427 | 1111 |
| XL | 616 | 447 | 73 | 69 | 140 | 635 | 530 | 857 | 44 | 714 | 427 | 1137 |
All measurements in millimetres unless marked (°) for angles.
