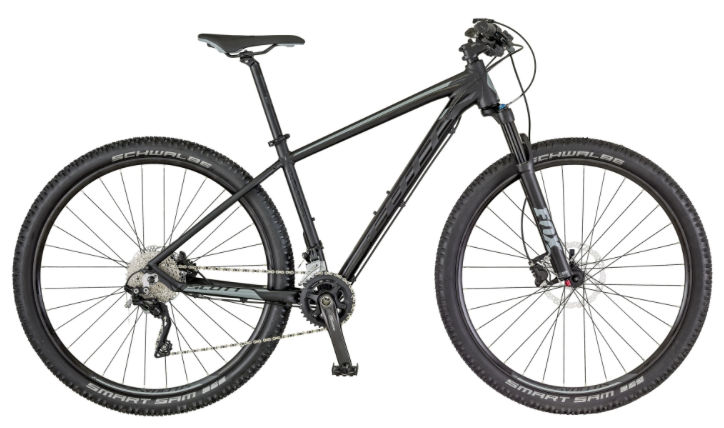

2018 Scott Aspect 29 geometry
Full frame geometry for the 2018 Scott Aspect 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 451 | 381 | 72.5 | 69.5 | 105 | 575 | 395 | 786 | 60 | 458 | 1083 |
| M | 482 | 388 | 72.5 | 69.5 | 115 | 585 | 440 | 817 | 60 | 458 | 1094 |
| L | 507 | 405 | 72.5 | 69.5 | 125 | 605 | 480 | 842 | 60 | 458 | 1114 |
| XL | 540 | 420 | 72.5 | 69.5 | 140 | 625 | 530 | 875 | 60 | 458 | 1136 |
| XXL | 573 | 436 | 72.5 | 69.5 | 155 | 645 | 580 | 881 | 60 | 458 | 1156 |
All measurements in millimetres unless marked (°) for angles.
